5 Megapixel Canon CMOS Global Shutter Sensor Features Technological Advances for Superior Imaging

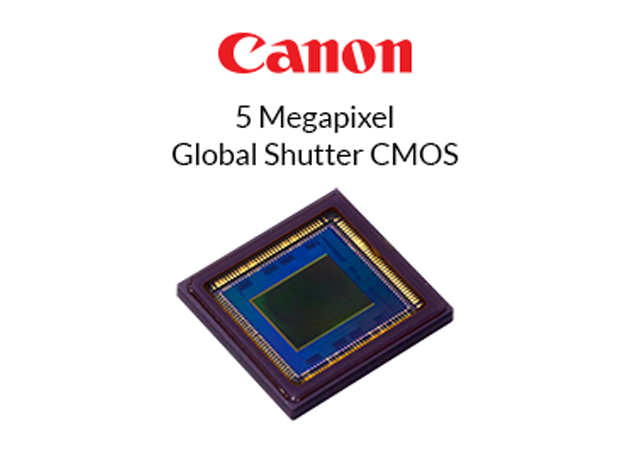

5 Megapixel Canon CMOS Sensor One of the latest Canon CMOS sensors, the 3U5MGXS 5MP Global Shutter CMOS Sensor, features a wide range of proprietary innovations that elevate this sensor above and beyond other 5 megapixel sensors. For machine vision applications and other industrial environments where a small size and high performance are required, this Canon CMOS sensor delivers high-quality images in RGB or monochrome.

In addition to factory automation, this sensor is ideal for use in unmanned aerial vehicles (UAVs), advanced driver-assistance systems (ADAS) in automobiles, and other challenging outdoor applications. The new technology deployed in this sensor is what enables it to excel in difficult environments.

5 Megapixel Canon CMOS Sensor Product Features

This Canon CMOS sensor features all new drive readout technology for optimized saturation signal. When combined with new pixel structure innovations, the result is a remarkably high dynamic range to allow for quality images in environments with a wide difference in brightness.

At 2/3” sensor size and 5.33 million effective pixels, with a pixel size of 3.4µm, the 5 megapixel CMOS sensor from Canon captures high-resolution images with all pixel progressive reading at 120 frames per second. This sensor handles the demands of high-performance applications.

Technical Advances of the 5 Megapixel Canon CMOS Sensor

The primary technological advance made with this Canon CMOS sensor is the light guide technology to maximize quantum efficiency and full well capacity. The light guide structure is situated within the global shutter pixel with the intent of capturing a wider range of angles of light. In this way, more light reaches the photodiode.

The light guide structure contributes to higher sensor sensitivity and a dramatically wider incident light angle detection. This technological innovation is at the heart of what makes the 5 megapixel Canon CMOS sensor so powerful in tough applications.

With a superior pixel design, including new drive readout technology, this Canon CMOS sensor is one of the highest performing 5-megapixel sensors on the market. It’s built to perform in demanding environments, such as in industrial or outdoor environments, while still reliably delivering high-quality images.

To learn more about this sensor, read on about the 3U5MGXS 5MP Global Shutter Canon CMOS Sensor from Phase 1 Technology.
