Shortwave Infrared (SWIR) imaging technology has revolutionized various industries by enabling previously unattainable applications with traditional visible light cameras. This post explores the unique capabilities of SWIR cameras, underlying technology, and diverse applications.
Understanding SWIR Technology
SWIR cameras operate in the non-visible light spectrum, specifically between 1000nm and 2700nm. This spectral range offers distinct advantages over both visible light and traditional infrared imaging:
-
Enhanced material differentiation: SWIR can create contrast based on material properties rather than color, allowing for improved substance identification.
-
Penetration capabilities: SWIR can see through certain materials, such as plastics and silicon, to inspect internal components.
-
Low-light performance: SWIR cameras can capture clear images in challenging lighting conditions due to their ability to utilize ambient illumination.
SWIR Camera Technology

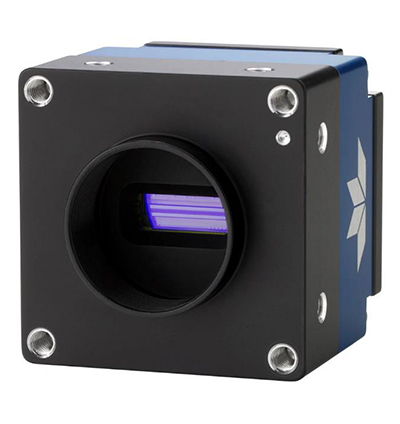

At the heart of SWIR cameras are specialized sensors that detect shortwave infrared radiation. While these sensors offer impressive capabilities within the SWIR spectrum, their resolution is generally lower than visible light sensors. In the context of SWIR imaging, a resolution of 640 x 512 pixels is considered high. However, it's crucial to understand that this is specific to SWIR technology and not comparable to the multi-megapixel resolutions common in visible light cameras.
Key Components
-
Sensors (typically InGaAs-based)
-
Specialized optics
-
Cooling systems (for some high-performance models)
Unlike thermal imaging, most SWIR applications require active illumination. Since illumination can present challenges for SWIR, LED light sources are commonly used throughout applications as they can provide specific wavelengths needed for optimal imaging.
Applications Across Industries
SWIR technology finds applications in a wide range of fields:
In machine vision and inspection, SWIR cameras excel at detecting defects in materials that may appear identical under visible light. This makes them invaluable for quality control in manufacturing processes, where subtle material differences can significantly impact product quality. SWIR is particularly effective in inspecting food products, especially those with high water content, as it can reveal internal characteristics and inconsistencies invisible to the naked eye.
The electronics industry benefits greatly from SWIR imaging capabilities. SWIR cameras can examine internal components through silicon packaging, which is transparent to shortwave infrared light. This non-destructive inspection method allows for identifying defects in semiconductor materials, ensuring the integrity of electronic components without disassembly.
In scientific and medical fields, SWIR imaging opens up new avenues for research and diagnostics. It enables detailed biological tissue analysis, providing insights into tissue composition and health that are inaccessible with visible light imaging. Medical diagnostics benefit from SWIR's ability to penetrate deeper into tissue, potentially revealing abnormalities earlier than traditional imaging methods. Additionally, SWIR cameras have found applications in astronomical imaging, capturing celestial phenomena that emit or reflect light in the shortwave infrared spectrum.
Agriculture and environmental monitoring have also been revolutionized by SWIR technology. Farmers and researchers can accurately assess crop health and moisture levels, leading to more efficient resource management and improved yields. SWIR cameras facilitate detailed vegetation analysis, helping to identify stressed or diseased plants before visible symptoms appear. Furthermore, these cameras play a crucial role in environmental monitoring, providing valuable data on factors such as soil moisture, water pollution, and atmospheric conditions.
Advantages of SWIR Imaging
SWIR technology offers several unique benefits:
-
Material identification: SWIR can differentiate materials based on their molecular composition, not just surface appearance.
-
Seeing through materials: Many opaque substances to visible light are transparent to SWIR, enabling "see-through" capabilities.
-
Low-light performance: SWIR cameras can produce clear images in challenging lighting conditions, including fog and haze.
-
Reduced thermal noise: Compared to longer-wavelength infrared cameras, SWIR devices typically require less cooling, making them more compact and energy-efficient.
-
Compatibility with glass optics: Unlike longer-wavelength infrared, SWIR can use standard glass lenses, reducing system costs.
Considerations When Choosing SWIR Cameras
When selecting a SWIR camera for your application, consider the following factors:
-
Resolution requirements: While lower than visible light cameras, ensure the chosen resolution meets your needs.
-
Sensor type: InGaAs sensors are common, but other options like colloidal quantum dot sensors are emerging.
-
Cooling requirements: Determine if your application requires a cooled or uncooled sensor.
-
Integration capabilities: Consider interface options and software compatibility for seamless system integration.
-
Budget: SWIR cameras are typically more expensive than visible light cameras, so balance performance needs with cost constraints.
Pushing the Boundaries of Machine Vision
SWIR technology opens up new possibilities in imaging and analysis across various industries. By understanding the unique capabilities and considerations of SWIR cameras, engineers and system integrators can leverage this powerful tool to solve complex imaging challenges. As the technology advances, we can expect even more innovative applications to emerge, further expanding the role of SWIR in machine vision and beyond.
