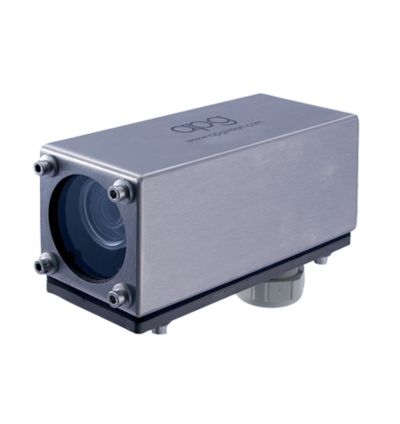

APG Vision 30D Camera Enclosure

The 30D Series enclosure offers a durable yet economical housing for inline-style cameras, combining stainless steel and aluminum to shield equipment from dust, debris, splashed water, impacts, and idle hands. Designed with flexibility in mind, it supports air cooling and an optional air curtain faceplate for enhanced environmental protection. The enclosure is easy to configure and service. Its removable cover provides full access to the camera and lens, simplifying adjustments to focus and f-stop settings.

A split-insert cable gland at the base creates a watertight seal around one or more premade cables, allowing them to pass through without removing connectors. Internally, the design allows lenses to sit close to the viewport to minimize reflections and can accommodate large-diameter lenses or ringlights with a lit area of up to 50mm. The 30D provides practical, streamlined protection for a wide range of industrial camera setups.

TECHNICAL INFORMATION:

Reliable Protection: Designed to provide essential protection against dust, dirt, light water spray, and accidental contact in industrial environments

Wide Camera Compatibility: Supports over 40 inline-style camera models for maximum integration flexibility

Standards-Compliant: Meets NEMA 12 requirements when equipped with a sealed viewport for non-hazardous indoor use

Durable Construction: Built with a 16-gauge 304 stainless steel cover and a 1/4″ 6061 aluminum base for strength and longevity

Adjustable Optics Positioning: Lens-to-viewport distance can be modified to accommodate long or wide-angle lenses

Customizable Viewport: Standard configuration includes a choice of glass or acrylic window

Premade Cable Support: Compatible with premade cables, no need to remove connectors during installation

Secure Mounting Hardware: All external fasteners are 18-8 stainless steel; camera mounting hardware is included for most supported models

Flexible Cord Grip Options: Choose from a PG29 drillable cord grip, 1″ NPT conduit fitting, or 1/4″ NPT connectors for air cooling and pressure regulation
