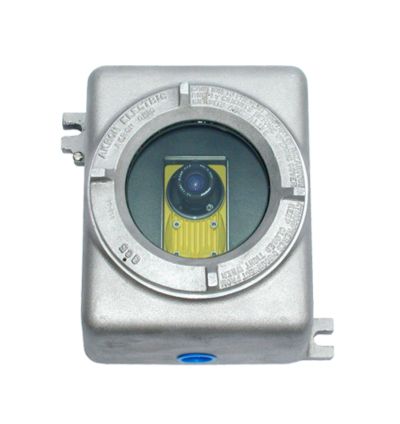

APG Vision L4 Camera Enclosure

The L4 Series enclosure is certified for use in hazardous locations, meeting NEC Class I, Groups B, C, and D, and Class II, Groups E, F, and G, under UL Listing 886. These classifications are defined in Article 500 of the National Electrical Code, ensuring the L4 is suitable for environments with flammable gases, vapors, and combustible dust. Its NEMA 4X rating also makes it a reliable choice for saltwater washdown applications, offering corrosion resistance in harsh industrial or marine settings.

Designed to support cameras with offset lenses or integrated ringlights, the L4 accommodates a maximum lens or ringlight diameter of 3.4″ and a total lens/camera height of approximately 4.6″. The viewing window has a 5.25″ diameter, and the internal camera mount allows the camera to be positioned up to 1.5″ closer to the viewport - ideal for shorter or wide-angle lenses. The enclosure includes a 1″ NPT tapped conduit port, with additional entries available if installed per factory guidelines.

TECHNICAL INFORMATION:

Corrosion-Resistant Construction: Made from copper-free aluminum for enhanced durability and resistance to saltwater corrosion

Camera Mounting Included: Supplied with fasteners to securely mount your camera within the enclosure

Adjustable Camera Positioning: Internal mount allows the camera to be raised by 38mm to support wide-angle lenses or integrated ringlights

Ingress Protection: Meets NEMA 4X standards for use in washdown and corrosive environments

Conduit Ready: Tapped with a 1″ NPT fitting for secure conduit attachment

Heavy-Duty Build: Weighs 22 lb, providing a robust solution for hazardous and industrial environments
