Baumer VCXG-13 Camera

Request a Quote

Available Variations:

  • VCXG-13C

  • VCXG-13M

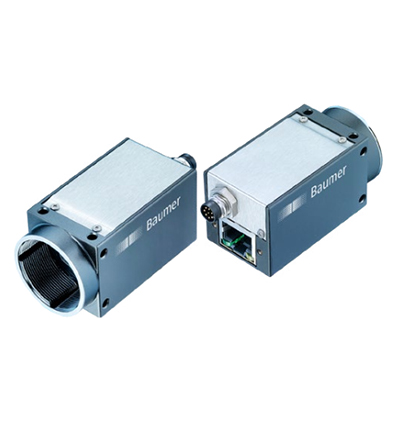

Product image of Baumer VCXG-13
Product Photos
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Product image of  Baumer VCXG-13

Baumer VCXG-13 cameras provide cutting-edge CMOS technology.

Using Baumer CX series cameras, you are banking on latest CMOS sensor generation Sony® Pregius™ and ON Semiconductor® PYTHON for future-oriented applications. Among the wide variety of sensors you are sure to find the matching camera for most varied applications across all industries.

Thanks to extended functionality combined with excellent image quality and high frame rates, the CX cameras open up a wide range of applications. The 29 × 29 mm form factor ensures easy integration with high amount of flexibility - even in narrow installation environments.

HIGHLIGHTS:

  • CMOS sensors
  • GigE power supply: 12 - 24 V externally or PoE
  • Camera temperature range up to 65°C
  • 29 x 29 mm to fit effortlessly into limited space
  • M3 mount at each side for time and cost-saving integration with high flexibility
  • Opta-Decoupled input and output with automation voltage levels
  • Burst Mode maximum sensor speed at any bandwidth

TECHNICAL INFORMATION:

  • Sensor ON Semiconductor PYTHON1300
  • Type 1/2” progressive scan CMOS
  • Resolution: 1280 × 1024 px
  • Exposure time 0,02 ... 1000 ms
  • Pixel size: 4.8 × 4.8 μm
  • Image formats, frame rate max.

    • Full Frame, 1280 × 1024 px, max. 94,0 fps
    • Binning 2×2, 640 × 512 px, max. 145,0 fps
    • Binning 2×1, 640 × 1024 px, max. 145,0 fps
    • Binning 1×2, 1280 × 512 px, max. 145,0 fps

Request a Quote

Quick Info for the Baumer VCXG-13C

Camera Category: Progressive Scan
Camera Series: CX
FPS: 96
Interface: GigE
Manufacturer: Baumer
Resolutions: 1 MP
Scanning Mode: Progressive Scan
Signal System: Color
Technology: GigE Cameras

Quick Info for the Baumer VCXG-13M

Camera Category: Progressive Scan
Camera Series: CX
FPS: 96
Interface: GigE
Manufacturer: Baumer
Resolutions: 1 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
Technology: GigE Cameras
