Baumer VCXU-24 Camera
Get a Quote for the Baumer VCXU-24
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
VCXU-24C
VCXU-24M

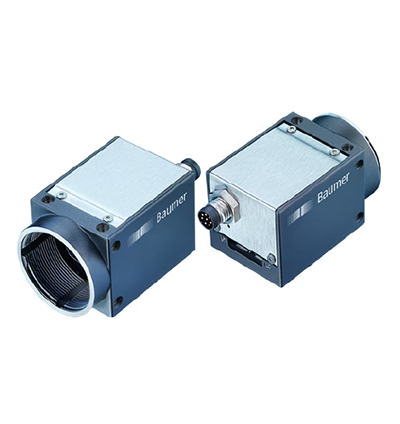

Baumer VCXU-24 cameras provide cutting-edge CMOS technology.
Using Baumer CX series cameras, you are banking on latest CMOS sensor generation Sony® Pregius™ and ON Semiconductor® PYTHON for future-oriented applications. Among the wide variety of sensors you are sure to find the matching camera for most varied applications across all industries.
Thanks to extended functionality combined with excellent image quality and high frame rates, the CX cameras open up a wide range of applications. The 29 × 29 mm form factor ensures easy integration with high amount of flexibility - even in narrow installation environments.
HIGHLIGHTS:
- CMOS sensors
- GigE power supply: 12 - 24 V externally or PoE
- Camera temperature range up to 65°C
- 29 x 29 mm to fit effortlessly into limited space
- M3 mount at each side for time and cost-saving integration with high flexibility
- Opta-Decoupled input and output with automation voltage levels
- Burst Mode maximum sensor speed at any bandwidth
Download Product PDF:
TECHNICAL INFORMATION:
- Sensor Sony IMX249
- Type 1/1.2” progressive scan CMOS
- Resolution: 1920 × 1200 px
- Exposure time: 0,057 ... 60000 ms
- Pixel size: 5.86 × 5.86 μm
- Image formats, frame rate max.
- Full Frame, 1920 × 1200 px, max. 38,5 fps
- Binning 2×2, 960 × 600 px, max. 38,5 fps
- Binning 2×1, 960 × 1200 px, max. 38,5 fps
- Binning 1×2, 1920 × 600 px, max. 38,5 fps
Quick Info for the Baumer VCXU-24C
Camera Category: | Progressive Scan |
---|---|
Camera Series: | CX |
FPS: | 30 |
Interface: | USB3 Vision |
Manufacturer: | Baumer |
Resolutions: | 2.3 MP |
Scanning Mode: | Progressive Scan |
Signal System: | Color |
Technology: | USB3 Vision Cameras |
Quick Info for the Baumer VCXU-24M
Camera Category: | Progressive Scan |
---|---|
Camera Series: | CX |
FPS: | 30 |
Interface: | USB3 Vision |
Manufacturer: | Baumer |
Resolutions: | 2.3 MP |
Scanning Mode: | Progressive Scan |
Signal System: | Monochrome |
Technology: | USB3 Vision Cameras |
