Baumer VCXU-50 Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Baumer VCXU-50

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • VCXU-50C

  • VCXU-50M

Baumer VCXU-50 cameras provide cutting-edge CMOS technology.

Using Baumer CX series cameras, you are banking on latest CMOS sensor generation Sony® Pregius and ON Semiconductor® PYTHON for future-oriented applications. Among the wide variety of sensors you are sure to find the matching camera for most varied applications across all industries.

Thanks to extended functionality combined with excellent image quality and high frame rates, the CX cameras open up a wide range of applications. The 29 × 29 mm form factor ensures easy integration with high amount of flexibility - even in narrow installation environments.

HIGHLIGHTS:

  • CMOS sensors
  • GigE power supply: 12 - 24 V externally or PoE
  • Camera temperature range up to 65°C
  • 29 x 29 mm to fit effortlessly into limited space
  • M3 mount at each side for time and cost-saving integration with high flexibility
  • Opta-Decoupled input and output with automation voltage levels
  • Burst Mode maximum sensor speed at any bandwidth



Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor Sony IMX250
  • Type 2/3” progressive scan CMOS
  • Resolution 2448 × 2048 px
  • Exposure time 0,043 ... 60000 ms
  • Pixel size 3.45 × 3.45 μm
  • Image formats, frame rate max.

    • Full Frame, 2448 × 2048 px, max. 77 fps
    • Binning 2×2, 1224 × 1024 px, max. 77 fps
    • Binning 2×1, 1224 × 2048 px, max. 77 fps
    • Binning 1×2, 2448 × 1024 px, max. 77 fps

Request a Quote

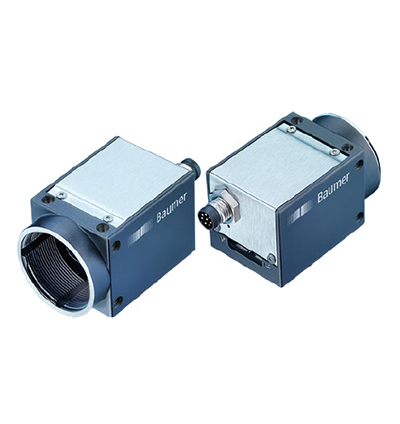

Product image of Baumer VCXU-50
Product Photos
Product image of  Baumer VCXU-50

Quick Info for the Baumer VCXU-50C

Camera Category: Progressive Scan
Camera Series: CX
FPS: 77
Interface: USB3 Vision
Manufacturer: Baumer
Resolutions: 5.1 MP
Scanning Mode: Progressive Scan
Signal System: Color

Quick Info for the Baumer VCXU-50M

Camera Category: Progressive Scan
Camera Series: CX
FPS: 77
Interface: USB3 Vision
Manufacturer: Baumer
Resolutions: 5.1 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
