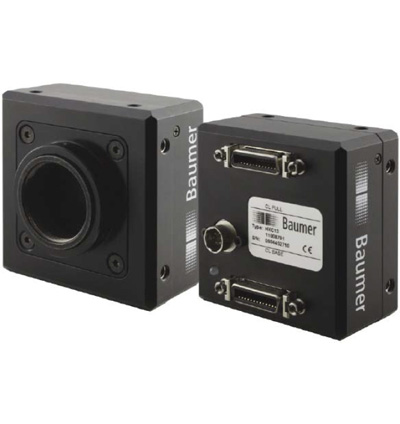

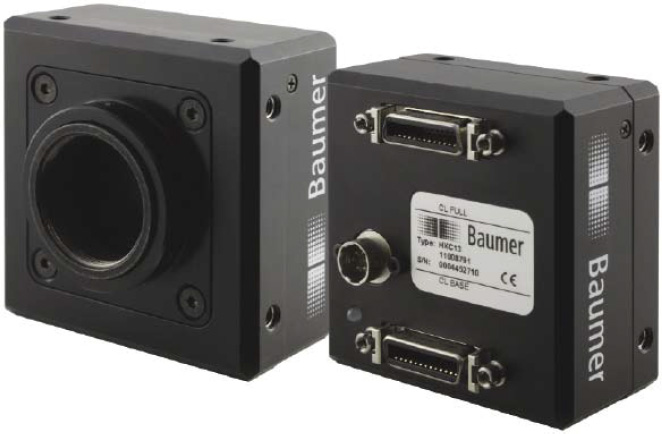

Baumer HXC13 Camera

Baumer HXC13 Camera - Digital Monochrome High Speed, 1.3 Megapixel, CameraLink

Maximum speed and resolution - cameras in the Baumer HX series are based on the most up-to-date CMOS sensors with global shutter technology. Their high sensitivity enables shorter inspection times. In addition to the established Camera Link interface, the HX series combines for the first time fast CMOS sensors with innovative Dual GigE technology

FEATURES:

• Base, medium or full CameraLink^® interface
• 1280 x 1024 pixel
• Up to 500 full frames per second
• Up to 120.000 frames per second at reduced resolution
• Very high photo sensitivity
• Up to three regions of interest
• X- and Y-Mirroring of image data

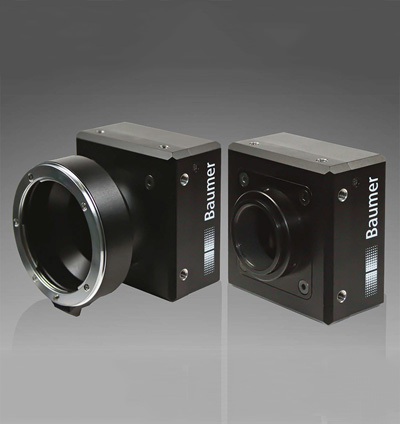

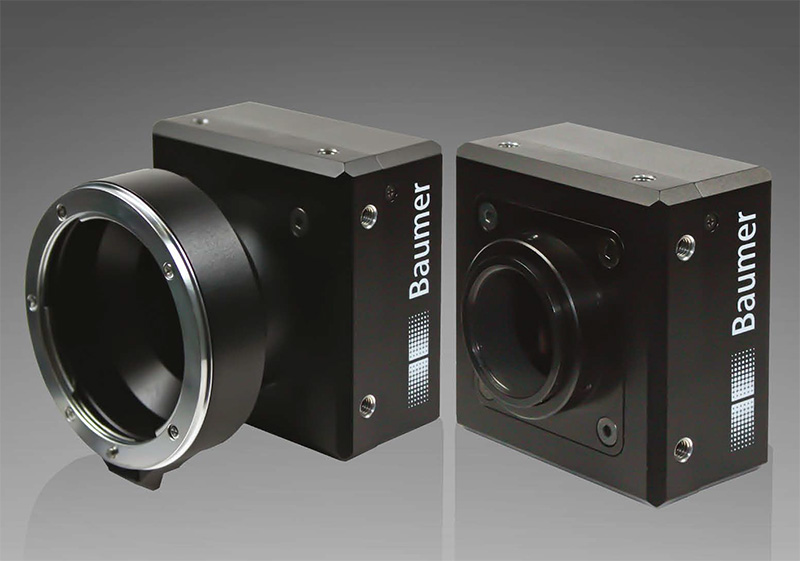

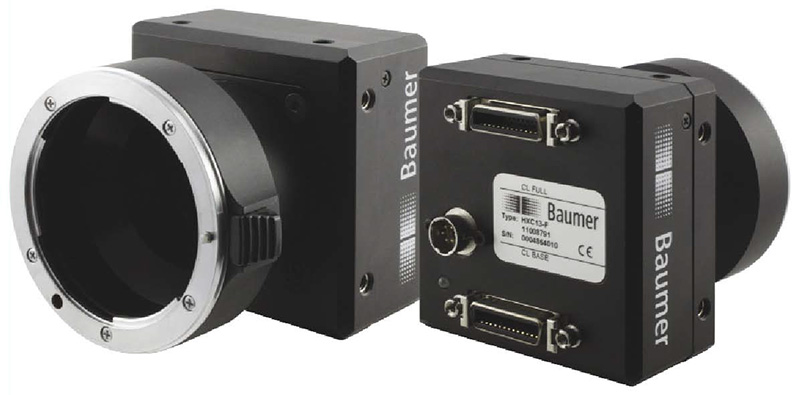

• C-, F- or M42-Mount interface
• Compact and lightweight aluminum housing

Download Product PDF:

• Baumer HXC13 Camera

TECHNICAL INFORMATION:

• Sensor: Cypress Lupa-1300-2
• Type: 1.4“ global shutter CMOS
• Resolution: 1280 × 1024 px
• Frame rate max.: 500 fps
• Exposure time: 0,002 ... 1000 ms
• Image formats: Full Frame, 1280 × 1024 px, max.500.0 fps
• Pixel formats: Mono 8, Mono 10
• Analog controls: Gain (Digital 1-4 times, 1/1024 steps) Offset (0 … 255 LSB)
• Color models: Mono
• Synchronization: free running, trigger
• Trigger sources: FrameGrabber
• Digital inputs: Strobe, opto decoupled
• Data interface: CameraLink Full, Connector: 2 x Standard MDR26
• Process interface: 6-pin Hirose
• Power supply: 6-pin Hirose
• Material: housing: aluminum
• Lens mount: C-mount, F-mount
• Width: 63 mm
• Height: 63 mm
• Depth: 33 mm
• Weight: 247 g
• Voltage supply range +Vs: 8 ... 24 VDC
• Power consumption: approx. 5.0 Watts
