Baumer HXC40 Camera - Digital Monochrome Progressive Scan With Camera Link® interface

Maximum speed and resolution – the cameras of our HX series are based on the most up-to-date CMOS sensors with global shutter technology. Their high sensitivity enables shorter inspection times.

FEATURES:

  • CameraLink® Full progressive scan CMOS camera
  • 2048 x 2048 pixel with up to 337 full frames per second
  • Excellent image quality
  • Global shutter architecture for minimized motion blur
  • Low noise due to correlated double sampling (CDS)
  • Binning, subsampling and true partial scan function (ROI) for increased frame rates
  • High Dynamic Range (HDR) image acquisition
  • External synchronization via industrial compliant process interface (trigger / flash)
  • Integrated supplementary function for flexible integration
  • Sequence function up to 231-1 frames per sequence
  • Integrated 256 MByte RAM for temporarily image data buffering
  • Compact and lightweight aluminum housing
  • Two standard 26 pin Mini-CameraLink® connectors
  • Support for CameraLink® Base, Medium, Full and 10 tap configurations
  • Camera parameter programmable via configuration tool for Windows
  • Baumer-GAPI: Flexible, generic software interface for Windows / Linux

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: CMOSIS CMV4000
  • Type: 1" global shutter CMOS
  • Resolution: 2048 × 2048 px
  • Frame rate max.: 180 fps
  • Exposure time: 0,02 ... 1000 ms
  • Image formats:
    Full Frame, 2048 × 2048 px, max.180.0 fps
    Binning 2×1, 1024 × 2048 px, max. 180.0 fps
    Subsampling 2×2, 1024 × 1024 px, max. 357.0 fps
  • Pixel formats: Mono 8, Mono10, Mono12
  • Analog controls: Gain (0 … 12 dB), Offset (0 … 255 LSB)
  • Color models: Mono
  • Internal buffer: 256 MB
  • Synchronization: free running, trigger
  • Trigger sources: Hardware, Software, FrameGrabber
  • Digital inputs: 3 output lines
  • Data interface: CameraLink® Full, Connector: 2 x Standard SDR26 (Mini CL)
  • Process interface: M8 / 8 pins
  • Power supply: M8 / 3 pins
  • Material: housing: aluminum
  • Lens mount: C-mount, F-mount
  • Width: 52 mm
  • Height: 52 mm
  • Depth: 37 mm
  • Weight: 185 g
  • Voltage supply range +Vs: 9,6 ... 30 VDC
  • Power consumption: approx. 5.5 Watts

Request a Quote

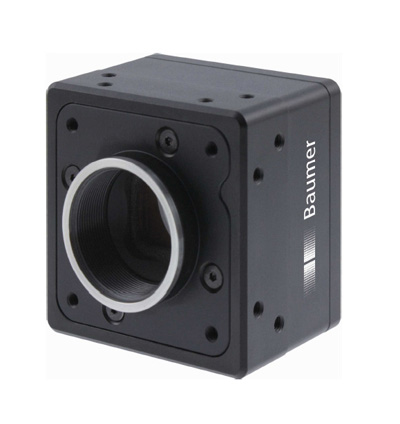

Product image of Baumer HXC40

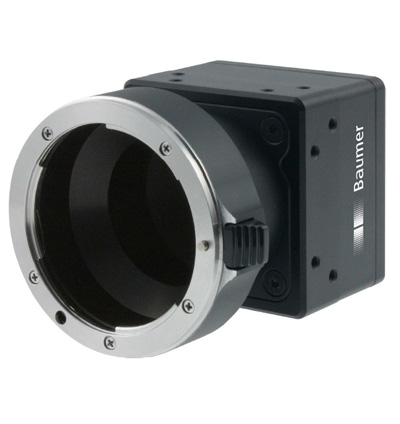

Product image of Baumer HXC40

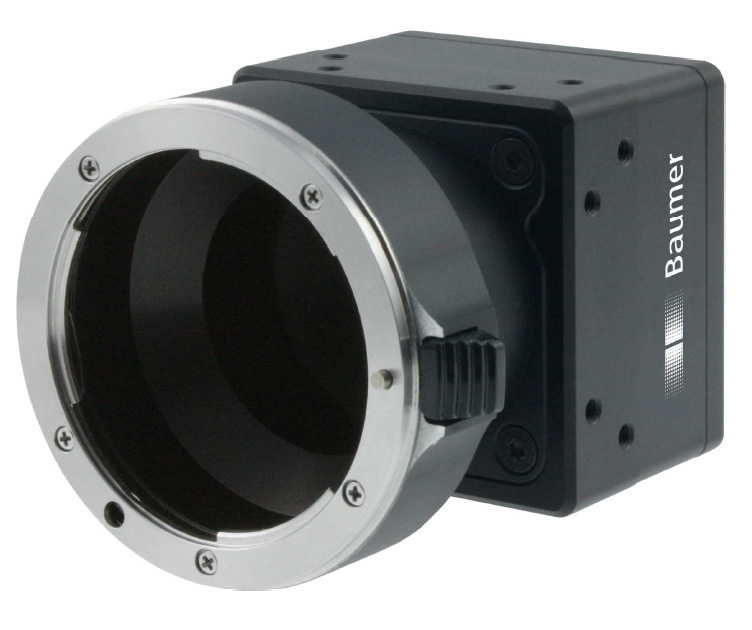

Product image of Baumer HXC40

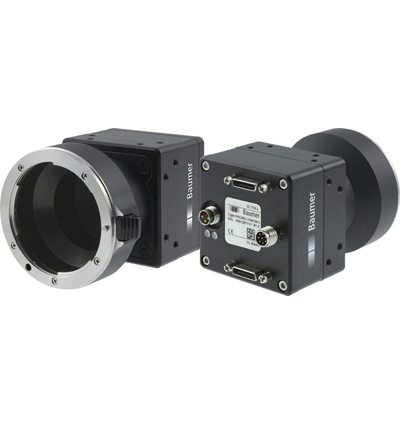

Product Photos
Product image of  Baumer HXC40 Product image of  Baumer HXC40 Product image of  Baumer HXC40

Quick Info for the Baumer HXC40

Camera Category: -
Camera Series: HX
FPS: 180
Interface: Camera Link
Manufacturer: Baumer
Resolutions: 4.2 MP
Scanning Mode: -
Signal System: Digital Monochrome

Quick Info for the Baumer HXC40c

Camera Category: -
Camera Series: HX
FPS: 180
Interface: Camera Link
Manufacturer: Baumer
Resolutions: 4.2 MP
Scanning Mode: -
Signal System: Digital Color

Quick Info for the Baumer HXC40NIR

Camera Category: -
Camera Series: HX
FPS: 180
Interface: Camera Link
Manufacturer: Baumer
Resolutions: 4.2 MP
Scanning Mode: -
Signal System: Digital Monochrome
