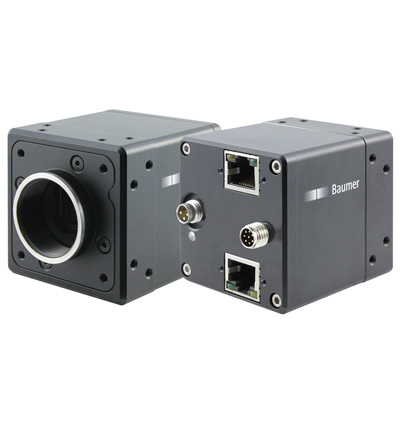

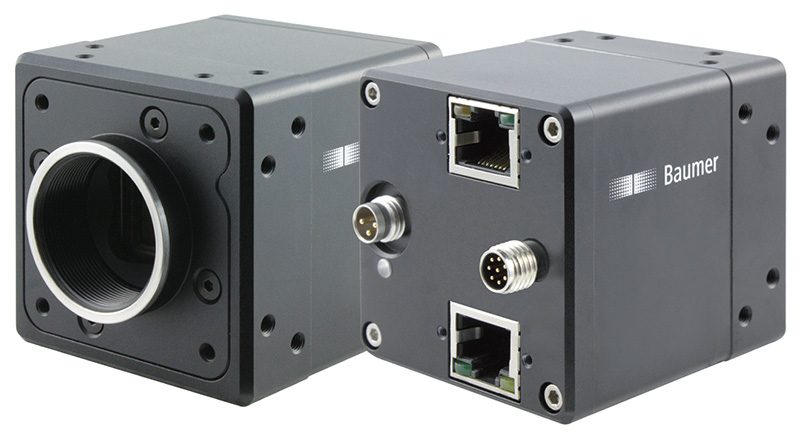

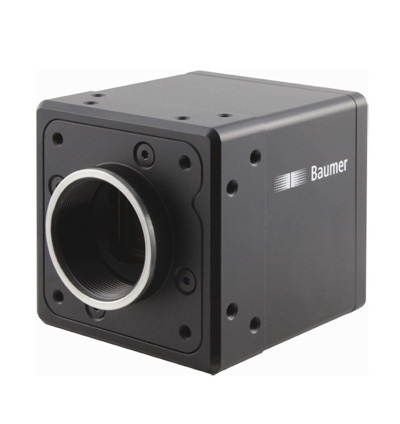

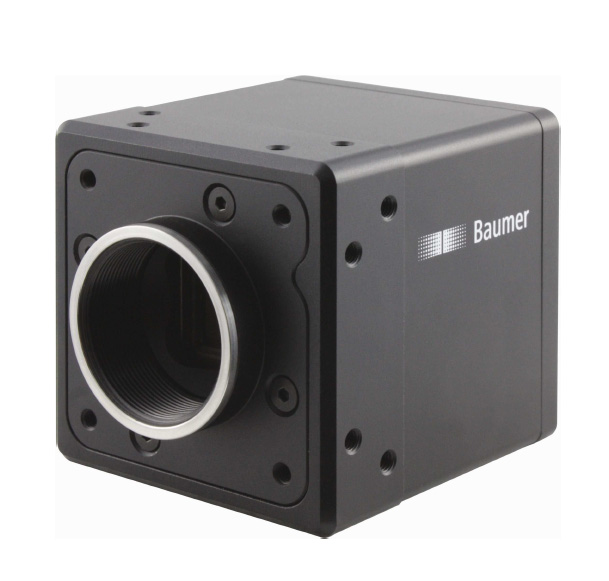

Baumer HXG20 Camera - Digital Monochrome Matrix Progressive Scan, 2 Megapixel, Dual GigE
Maximum speed and resolution - cameras in the Baumer HX series are based on the most up-to-date CMOS sensors with global shutter technology. Their high sensitivity enables shorter inspection times. In addition to the established Camera Link interface, the HX series combines for the first time fast CMOS sensors with innovative Dual GigE technology
FEATURES:
- Dual Gigabit Ethernet progressive scan CMOS camera
- 2048 x 1088 pixel with up to 105 full frames per second
- Burst mode with up to 337 full frames per second using integrated 256 MByte RAM for temporarily image buffering
- GigE Vision™ standard compliant
- Excellent image quality
- Global shutter architecture for minimized motion blur
- Low noise due to correlated double sampling (CDS)
- Binning, subsampling and true partial scan function (ROI) for increased frame rates
- High Dynamic Range (HDR) image acquisition
- External synchronization via industrial compliant process interface (trigger / flash)
- Integrated supplementary function for flexible integration
- Sequence function up to 231-1 frames per sequence
- Jumbo frames supported
- Camera parameter programmable in real-time
- Static Link Aggregation for higher bandwidth and resilience
- Power over Ethernet support
- Compact and lightweight aluminum housing
- Standard RJ45 connector
- Screw-lock type industrial connector
- Baumer-GAPI: Flexible, generic software interface for Windows / Linux
Download Product PDF:
TECHNICAL INFORMATION:
- Sensor: CMOSIS CMV2000
- Type: 2/3“ global shutter CMOS
- Resolution: 2048 × 1088 px
- Frame rate max.: 105 fps
- Exposure time: 0,02 ... 1000 ms
- Image formats:
Full Frame: 2048 × 1088 px, max.109.0 fps
Binning: 2×1, 1024 × 1088 px, max. 216.0 fps
Subsampling: 2×2, 1024 × 544 px, max. 433.0 fps - Pixel formats: Mono 8, Mono 10, Mono 12
- Analog controls: Gain (0 … 12 dB), Offset (0 … 255 LSB))
- Color models: Mono
- Synchronization: free running, trigger
- Trigger sources: Hardware, Software, ActionCommand
- Digital inputs: 3 output lines
- Data interface: Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), Screw lock type
- Process interface: M8 / 8 pins
- Power supply: M8 / 3 pins
- Material: housing: aluminum

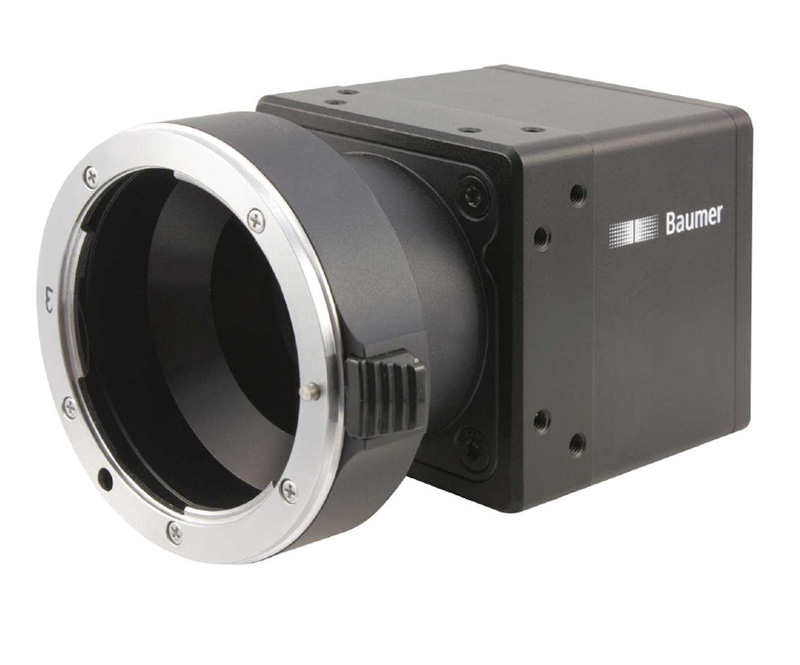

- Lens mount: C-mount, F-mount
- Width: 52 mm
- Height: 52 mm
- Depth: 55 mm
- Weight: 185 g
- Voltage supply range +Vs: 20 ... 30 VDC
- Power consumption: approx. 7.7 Watts
Quick Info for the Baumer HXG20
Camera Category: | - |
---|---|
Camera Series: | HX |
FPS: | 105 |
Interface: | GigE |
Manufacturer: | Baumer |
Resolutions: | 2.2 MP |
Scanning Mode: | - |
Signal System: | Digital Monochrome |
Technology: | GigE Cameras |
Quick Info for the Baumer HXG20c
Camera Category: | - |
---|---|
Camera Series: | HX |
FPS: | 105 |
Interface: | GigE |
Manufacturer: | Baumer |
Resolutions: | 2.2 MP |
Scanning Mode: | - |
Signal System: | Digital Monochrome |
Technology: | GigE Cameras |
Quick Info for the Baumer HXG20NIR
Camera Category: | - |
---|---|
Camera Series: | HX |
FPS: | 105 |
Interface: | GigE |
Manufacturer: | Baumer |
Resolutions: | 2.2 MP |
Scanning Mode: | - |
Signal System: | Digital Monochrome |
Technology: | GigE Cameras |
