Baumer HXG40 Camera - Digital Monochrome Progressive Scan

Maximum speed and resolution - cameras in the Baumer HX series are based on the most up-to-date CMOS sensors with global shutter technology. Their high sensitivity enables shorter inspection times. In addition to the established Camera Link interface, the HX series combines for the first time fast CMOS sensors with innovative Dual GigE technology

FEATURES:

  • Dual Gigabit Ethernet progressive scan CMOS camera
  • 2048 x 2048 pixel with up to 56 full frames per second
  • Burst mode with up to 180 full frames per second using integrated 256 MByte RAM for temporarily image buffering
  • GigE VisionTM standard compliant
  • Excellent image quality
  • Global shutter architecture for minimized motion blur
  • Low noise due to correlated double sampling (CDS)
  • Binning, subsampling and true partial scan function (ROI) for increased frame rates
  • High Dynamic Range (HDR) image acquisition
  • External synchronization via industrial compliant process interface (trigger / flash)
  • Integrated supplementary function for flexible integration
  • Sequence function up to 231-1 frames per sequence
  • Jumbo frames supported
  • Camera parameter programmable in real-time
  • Static Link Aggregation for higher bandwidth and resilience
  • Power over Ethernet support
  • Compact and lightweight aluminum housing
  • Standard RJ45 connector
  • Screw-lock type industrial connector
  • Baumer-GAPI: Flexible, generic software interface for Windows / Linux

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: CMOSIS CMV4000
  • Type: 1" global shutter CMOS
  • Resolution: 2048 × 2048 px
  • Frame rate max.: 56 fps
  • Exposure time: 0,02 ... 1000 ms
  • Image formats:
    Full Frame: 2048 × 2048 px, 58.0 fps
    Binning 2× 2×1, 1024 × 2048 px, max. 115.0 fps
    Subsampling 2×2×2, 1024 × 1024 px, max. 230.0 fps
  • Pixel formats: Mono 8, Mono 10, Mono 12
  • Analog controls: Gain (0 … 12 dB), Offset (0 … 255 LSB)
  • Color models: Mono
  • Internal buffer: 256 MB
  • Synchronization: free running, trigger
  • Trigger sources: Hardware, Software, ActionCommand
  • Digital inputs: 3 output lines
  • Data interface: Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), Screw lock type
  • Process interface: M8 / 8 pins
  • Power supply: M8 / 3 pins
  • Material: housing: aluminum
  • Lens mount: C-mount, F-mount
  • Width: 52 mm
  • Height: 52 mm
  • Depth: 55 mm
  • Weight: 185 g
  • Voltage supply range +Vs: 20 ... 30 VDC
  • Power consumption: approx. 8.4 Watts

Request a Quote

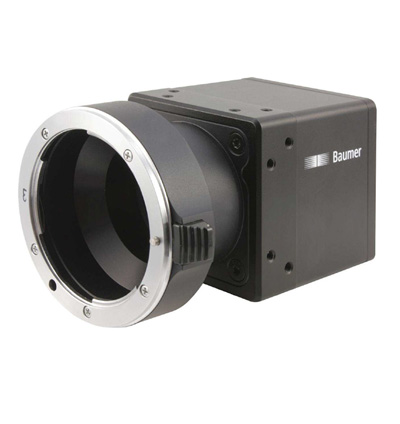

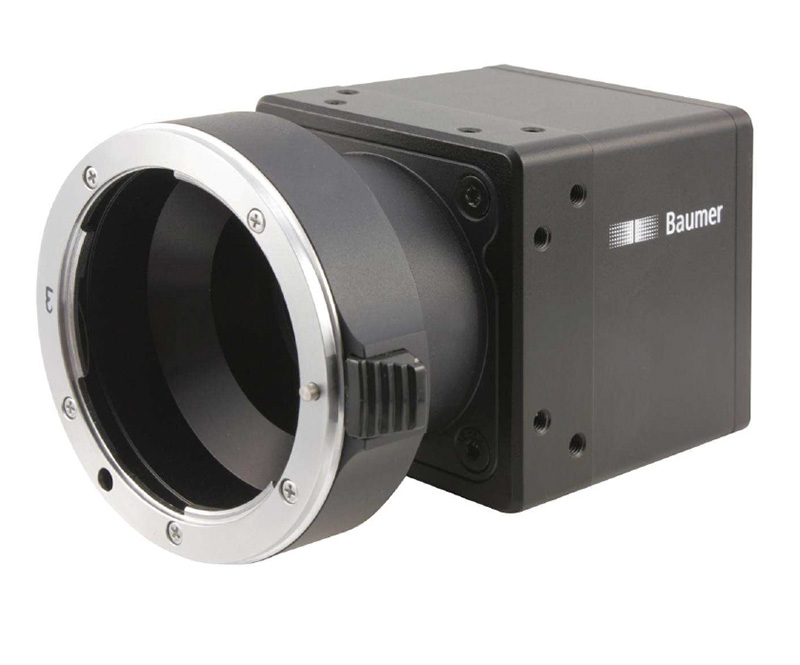

Product image of Baumer HXG40

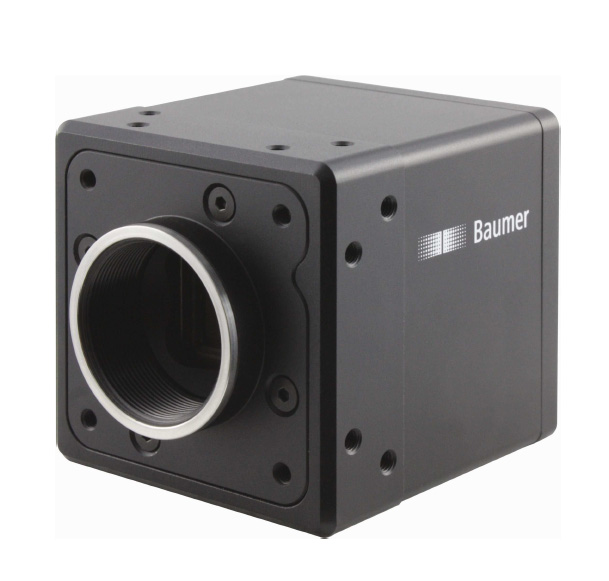

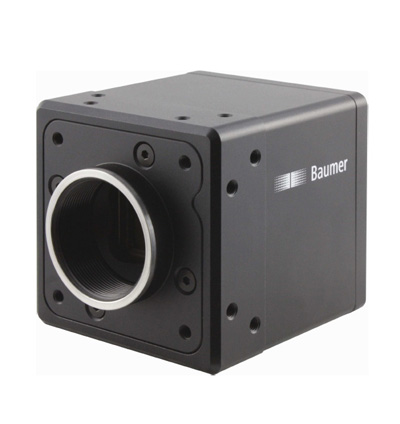

Product image of Baumer HXG40

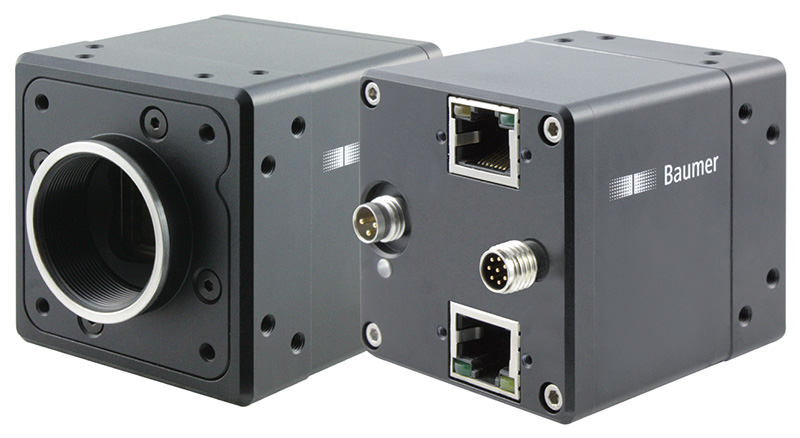

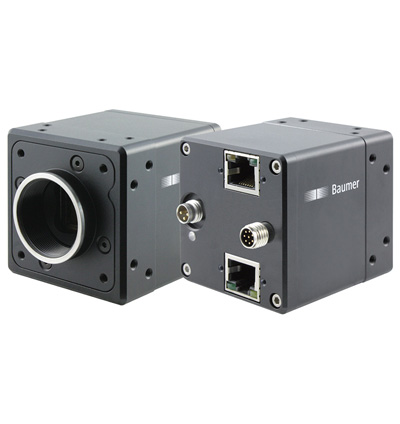

Product image of Baumer HXG40
Product Photos
Product image of  Baumer HXG40 Product image of  Baumer HXG40 Product image of  Baumer HXG40

Quick Info for the Baumer HXG40

Camera Category: -
Camera Series: HX
FPS: 56
Interface: GigE
Manufacturer: Baumer
Resolutions: 4.2 MP
Scanning Mode: -
Signal System: Digital Monochrome

Quick Info for the Baumer HXG40c

Camera Category: -
Camera Series: HX
FPS: 56
Interface: GigE
Manufacturer: Baumer
Resolutions: 4.2 MP
Scanning Mode: -
Signal System: Digital Color

Quick Info for the Baumer HXG40NIR

Camera Category: -
Camera Series: HX
FPS: 56
Interface: GigE
Manufacturer: Baumer
Resolutions: 4.2 MP
Scanning Mode: -
Signal System: Digital Monochrome
