Baumer MXG12 Camera - Digital Monochrome Board Level, 1.2 Megapixels, Gigabit Ethernet

In many applications progress is measured by advancing miniaturization, so every cubic millimeter of installation space counts. The new MXG board level camera series from Baumer is the solution for applications that demand this high level of flexibility.

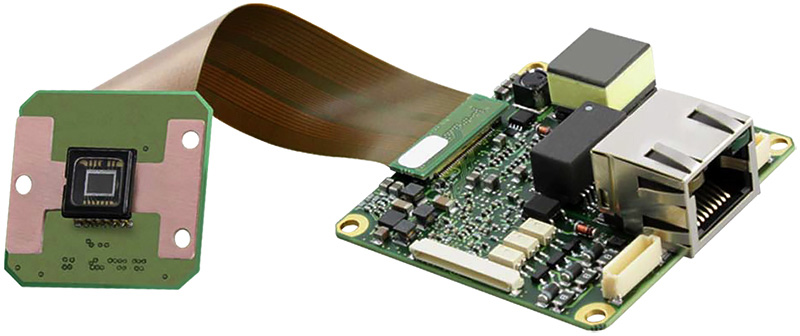

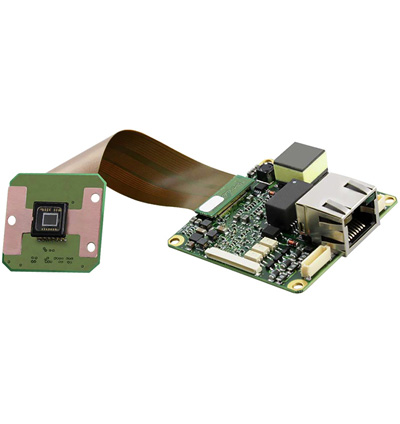

The separate sensor board measures only 28.5 x 28.5 mm, hardly larger than a 2-Euro coin. It is connected to the system circuit board via flexprint. This allows the cameras to be individually integrated even into small, cramped installation spaces in almost any mechanical design.

FEATURES:

  • Internal Buffer 120 MB (max. 30 images)
  • Synchronization Free running, Trigger
  • Trigger Sources Hardware, Software, ActionCommand, All or Off
  • Trigger Delay 0 ... 2 sec, Tracking and buffering of up to 512 triggers
  • Sequencer Automated control for series of images using different sets of parameters
  • Sequencer Characteristics up to 128 sets of parameters, up to 65536 loop passes, up to 65536 repetitions of sets of parameters, up to 65536 images per trigger event
  • Sequencer Parameters Exposure Time, Gain Factor, Output Line, ROI Offset x, ROI Offset y Digital I/Os 1 input line, 3 output lines
  • 1 input line, 3 output lines

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: SONY ICX6180
  • Type: 1/4" progressive scan CCD
  • Resolution: 656 × 490 px
  • Frame rate max.: 160 fps
  • Image formats: Full Frame, 656 x 490 px, max. 160.0 fps
  • Pixel formats: Mono 8, Mono12, Mono12 Packed
  • Analog controls: Gain (0 … 26 dB), Offset (0 … 1023 LSB 14 Bit)
  • Color models: Mono
  • Internal buffer: 120 MB
  • Synchronization: free running, trigger
  • Trigger sources: Hardware, Software, ActionCommand
  • Digital inputs: 3 output lines
  • Data interface: Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45)
  • Process interface: JSTBM08B-SRSS-TB 8 pins
  • Power supply: JSTBM03B-SRSS-TB 3 pins
  • Material: without housing
  • Lens mount: C-mount (adapter)
  • Width: 28,5 mm (Sensorprint), 48 mm (Systemprint)
  • Height: 28,5 mm (Sensorprint), 48 mm (Systemprint)
  • Weight: 30 g
  • Voltage supply range +Vs:
    12 ... 24 VDC (external Power Supply)
    36 ... 57 VDC (Power over Ethernet)
  • Power consumption:
    ca. 3.6 Watt @ 12 V DC und 42.0 fps
    ca. 3.8 Watt @ 48 V DC (PoE) und 42.0 fps
