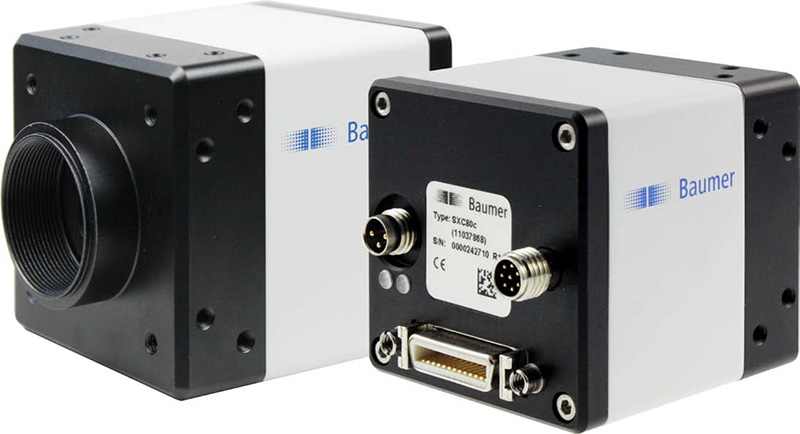

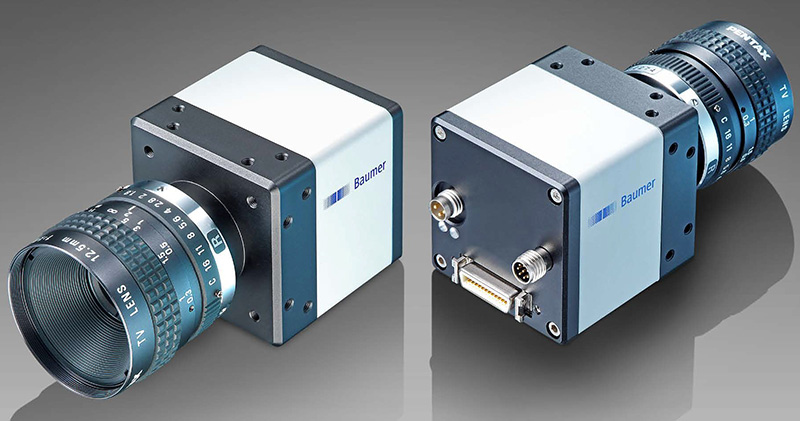

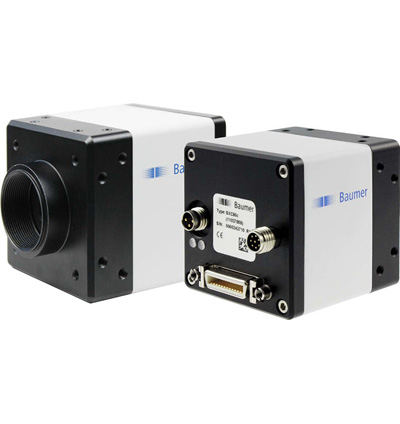

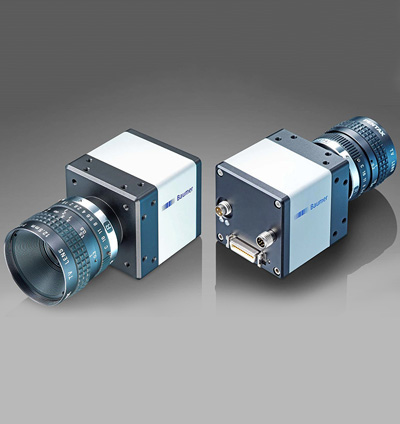

Baumer SXC80 Camera

Baumer SXC80 Camera - Digital Monochrome Matrix, 8 Megapixel, CameraLink^®

The CCD cameras with CameraLink^® in the Baumer SX series show every detail, no matter how fine, even with short inspection times. Thanks to the wide diversity of variants, they always fit the bill in many different applications.

FEATURES:

• CameraLink^® progressive scan CCD camera
• 3296 x 2472 pixel
• Up to 16 full frames per second
• Excellent image quality
• High sensitivity and dynamic range
• Binning and true partial scan function (ROI) for increased frame rates
• External synchronization via industrial compliant process interface (trigger / flash)
• Integrated supplementary function for flexible integration
• Integrated 256 MByte RAM for temporarily image data buffering
• Compact and lightweight aluminum housing
• Standard 26 pin MDR CameraLink® connector
• Camera parameter programmable via configuration tool for Windows
• Baumer-GAPI: Flexible, generic software interface for Windows / Linux

Download Product PDF:

• Baumer SXC80 Camera

TECHNICAL INFORMATION:

• Sensor: Truesense Imaging KAI-08050
• Type: 4/3" interline progressive scan CCD
• Resolution: 3296 × 2472 px
• Frame rate max.: 16 fps
• Exposure time: 0,01 ... 1000 ms
• Image formats:
  Full Frame, 3296 × 2472 px, max. 16.0 fps
  Binning 2×2, 1648 × 1236 px, max. 28.0 fps
  Binning 1×2, 3296 × 1236 px, max. 28.0 fps
  Binning 2×1, 1648 × 2472 px, max. 16.0 fps
• Pixel formats: Mono 8, Mono10, Mono12
• Analog controls: Gain (0 … 26 dB)
• Color models: Mono
• Internal buffer: 256 MB
• Synchronization: free running, trigger
• Trigger sources: Hardware, Software, FrameGrabber
• Digital inputs: 3 output lines
• Data interface: CameraLink^® Base, Connector: Standard SDR26
• Process interface: M8 / 8 pins
• Power supply: M8 / 3 pins
• Material: housing: aluminum
• Lens mount: C-mount, F-mount
• Width: 52 mm
• Height: 52 mm
• Depth: 54 mm
• Weight: 230g
• Voltage supply range +Vs: 9,6 ... 30 VDC
• Power consumption: approx. 9.0 Watts
