Baumer SXG20 Camera - Digital Monochrome Matrix, 2 Megapixel, Dual GigE

The CCD cameras with Dual GigE in the Baumer SX series show every detail, no matter how fine, even with short inspection times. Thanks to the wide diversity of variants, they always fit the bill in many different applications.

FEATURES:

  • Dual Gigabit Ethernet progressive scan CCD camera
  • 1600 x 1200 pixel
  • Up to 68 full frames per second
  • GigE VisionTM standard compliant
  • Excellent image quality
  • High sensitivity and dynamic range
  • Binning and true partial scan function (ROI) for increased frame rates
  • Sequence function up to 231-1 frames per sequence Integrated supplementary function for flexible integration
  • Jumbo frames supported
  • Integrated 256 MByte RAM for temporarily image data buffering
  • Camera parameter programmable in real-time
  • Static Link Aggregation for higher bandwidth and resilience
  • Power over Ethernet support
  • External synchronization via industrial compliant process interface (trigger / flash)
  • Compact and lightweight aluminum housing
  • Standard RJ45 connector
  • Screw-lock type industrial connector
  • Baumer-GAPI: Flexible, generic software interface for Windows / Linux

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: Truesense Imaging KAI-02050
  • Type: 2/3" interline progressive scan CCD
  • Resolution: 1600 × 1200 px
  • Frame rate max.: 68 fps
  • Exposure time: 0,005 ... 1000 ms
  • Image formats:
    Full Frame, 1600 × 1200 px, max.68.0 fps
    Binning 2×2, 800 × 600 px, max. 123.0 fps
    Binning 1×2, 1600 × 600 px, max. 123.0 fps
    Binning 2×1, 800 × 1200 px, max. 68.0 fps
  • Pixel formats: Mono 8, Mono10, Mono12
  • Analog controls: Gain (0 … 26 dB)
  • Color models: Mono
  • Internal buffer: 256 MB
  • Synchronization: free running, trigger
  • Trigger sources: Hardware, Software, ActionCommand
  • Digital inputs: 3 output lines
  • Data interface: Dual Gigabit Ethernet, Transfer rate 2000 Mbits/sec, Connector: 2 x 8P8C Modular Jack (RJ45), Screw lock type
  • Process interface: M8 / 8 pins
  • Power supply: M8 / 3 pins
  • Material: housing: aluminum
  • Lens mount: C-mount
  • Width: 52 mm
  • Height: 52 mm
  • Depth: 72 mm
  • Weight: 285g
  • Voltage supply range +Vs: 20 ... 30 VDC
  • Power consumption: approx. 11.0 Watts

Request a Quote

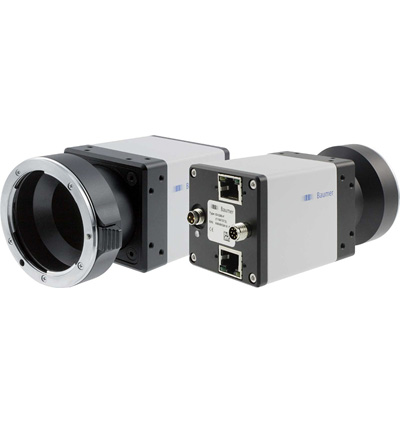

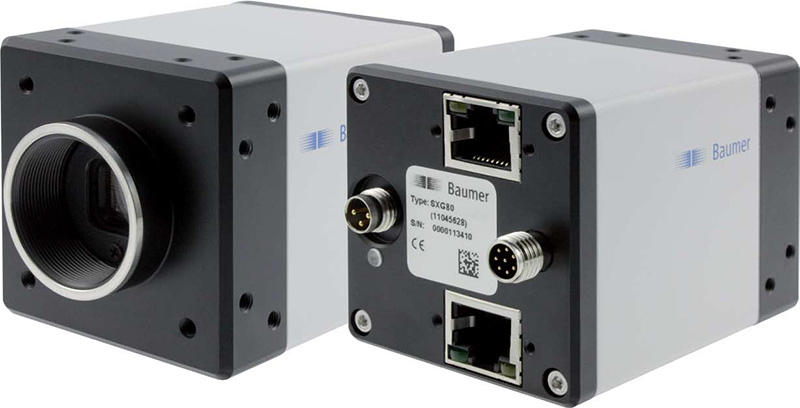

Product image of Baumer SXG20
Product image of Baumer SXG20
Product Photos

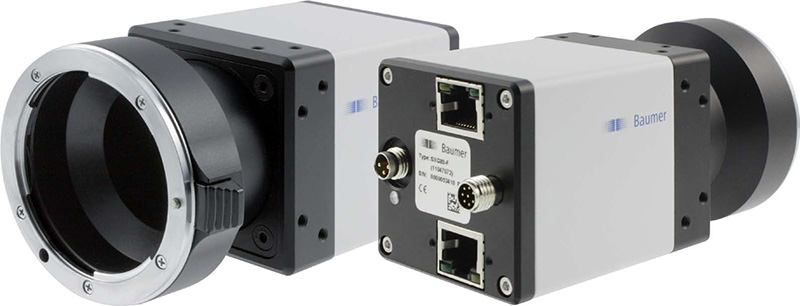

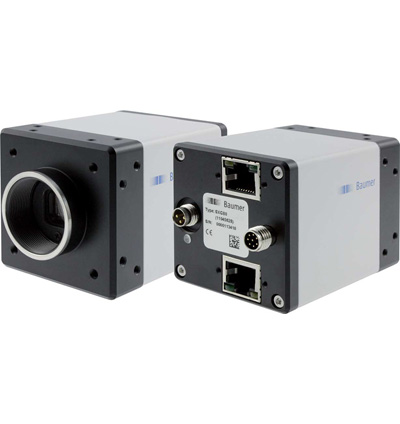

Product image of  Baumer SXG20 Product image of  Baumer SXG20

Quick Info for the Baumer SXG20

Camera Category: -
Camera Series: SX
FPS: 68
Interface: GigE
Manufacturer: Baumer
Resolutions: 1.9 MP
Scanning Mode: -
Signal System: Digital Monochrome
Technology: GigE Cameras

Quick Info for the Baumer SXG20c

Camera Category: -
Camera Series: SX
FPS: 68
Interface: GigE
Manufacturer: Baumer
Resolutions: 1.9 MP
Scanning Mode: -
Signal System: Digital Color
Technology: GigE Cameras
