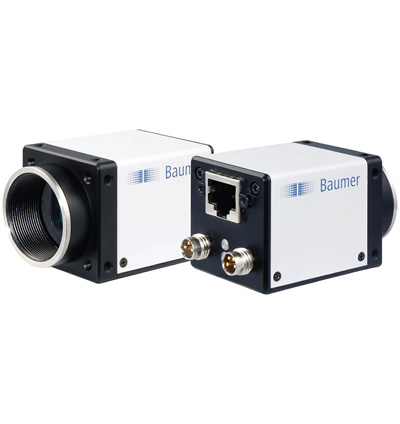

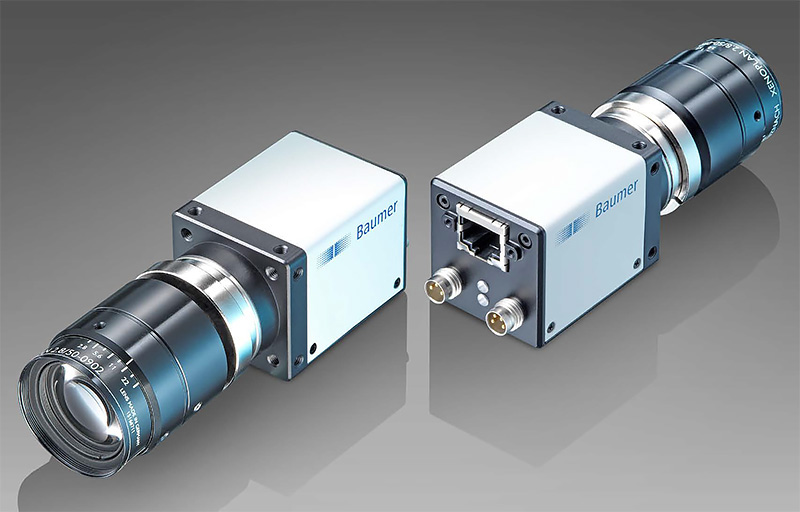

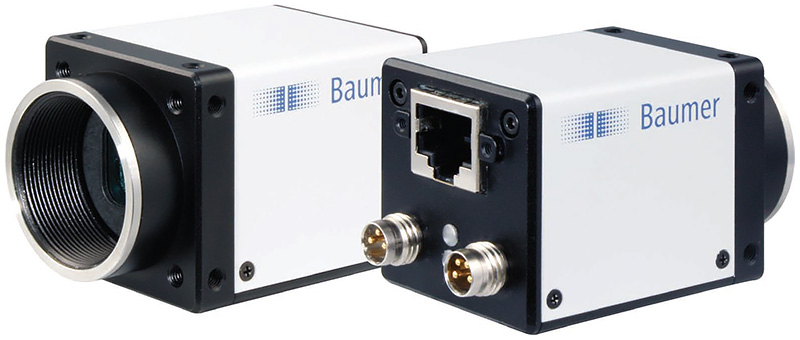

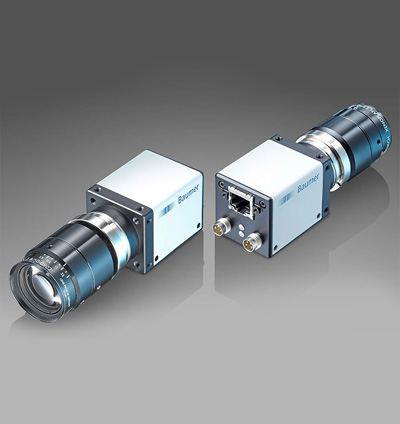

Baumer TXG14 Camera

Baumer TXG14 Camera - Digital Monochrome Matrix, 1.4 Megapixels, Gigabit Ethernet

Sophisticated characteristics are combined in the Baumer TX digital matrix camera series. Maximum signal and image quality are ensured with all models and configurations even under harsh environmental conditions. Thus, almost unlimited applications are enabled by the TX series. Reproducible measurement results and very reliable operation are achieved thanks to the clever thermal management and the robust industrial design. The functionality of these devices complies with the GenICam^™ standard.

The TX cameras are available with FireWire^™ or Gigabit Ethernet. Innovative extensions such as Power over Ethernet (PoE) or multiple digital input and output ports are additional options.

FEATURES:

• Gigabit Ethernet progressive scan CCD camera
• 1392 x 1040 pixel
• Up to 20 full frames per second
• GigE Vision^® standard compliant
• Outstanding image quality
• High sensitivity and dynamic range
• High quality slow scan mode for lowest readout noise
• Binning and true partial scan function (ROI) for increased
  frame rates
• External synchronization via industrial compliant process
  interface (trigger / flash)
• Integrated supplementary function for flexible integration
• Sequence function up to 231-1 frames per sequence
• Jumbo frames supported
• Integrated 32 MByte RAM for temporarily image data
  buffering
• Camera parameter programmable in real-time
• Ultra compact and lightweight aluminum housing
• Standard RJ45 connector
• Screw-lock type industrial connector
• Baumer-GAPI: Flexible, generic software interface for
  Windows / Linux

Download Product PDF:

• Baumer TXG14 Camera

TECHNICAL INFORMATION:

• Sensor: 2/3" interline progressive scan CCD Exview technology
• Shutter / readout mode: global shutter / progressive scan readout
• Number of pixel: 1392 x 1040
• Scan area: 8.98 mm x 6.70 mm
• Pixel size: 6.45 μm x 6.45 μm
• Color filter: -
• Pixel clock: 40 MHz fast scan / 20 MHz high quality (HQ) scan
• Image data buffer: max. 7 images
• Optical interface: C-Mount on request: CS-Mount
• Dimensions: 36 x 36 x 48 mm
• Weight: < 90 g
• Network interface: 1000BASE-T (1000 Mbit / sec)
