Baumer VLG-22 Camera - Digital Color Matrix, Gigabit Ethernet, CMOS

With the new VisiLine® camera series you can rely on innovative technologies and the proven quality of our successful TX series. Consistent further developments have made the cameras better in all areas: higher frame rates with even better image quality and more functionality.

For simplified solution of demanding image processing tasks, the cameras are equipped with a large number of technical features. For example, color comparison as well as FPN correction and HDR in the CMOS models facilitate efficient image analysis. Multi I/O, PoE and storable user sets also make it easy to integrate the cameras in your system.

FEATURES:

  • Internal Buffer 120 MB (max. 30 images)
  • Synchronization Free running, Trigger
  • Trigger Sources Hardware, Software, ActionCommand, All or Off
  • Trigger Delay 0 ... 2 sec, Tracking and buffering of up to 512 triggers
  • Sequencer Automated control for series of images using different sets of parameters
  • Sequencer Characteristics up to 128 sets of parameters, up to 65536 loop passes, up to 65536 repetitions of sets of parameters, up to 65536 images per trigger event
  • Sequencer Parameters Exposure Time, Gain Factor, Output Line, ROI Offset x, ROI Offset y
  • Digital I/Os 1 input line, 3 output lines

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: CMOSIS CMV2000
  • Type: 2/3" progressive scan CMOS
  • Resolution: 2044 × 1084 px
  • Frame rate max.: 55 fps
  • Image formats: Full Frame, 2044 x 1084 px, max. 55.0 fps
  • Pixel formats:
    Mono 8
    BayerRG8
    BayerRG12
    RGB8 Packed
    BGR8 Packed
    YUV411 Packed
    YUV422 Packed
    YUV444 Packed
  • Analog controls: Gain (0 … 18 dB), Offset (0 … 255 LSB 12 Bit)
  • Color models: RGB, YUV, Mono
  • Internal buffer: 120 MB
  • Synchronization: free running, trigger
  • Trigger sources: Hardware, Software, ActionCommand
  • Digital inputs: 3 output lines
  • Data interface: Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screw lock type
  • Process interface: SACC-DSI-M8FS-3CON-M10-L180 SH
  • Power supply: SACC-DSI-M 8MS-6CON-L180 SH
  • Material: aluminium, IP 40
  • Lens mount: C-mount
  • Width: 33 mm
  • Height: 33 mm
  • Depth: 48 mm
  • Weight: 90 g
  • Voltage supply range +Vs:
    12 ... 24 VDC (external Power Supply)
    36 ... 57 VDC (Power over Ethernet)
  • Power consumption:
    ca. 3.5 Watt @ 12 V DC und 55.0 fps
    ca. 3.8 Watt @ 48 V DC (PoE) und 55.0 fps

Request a Quote

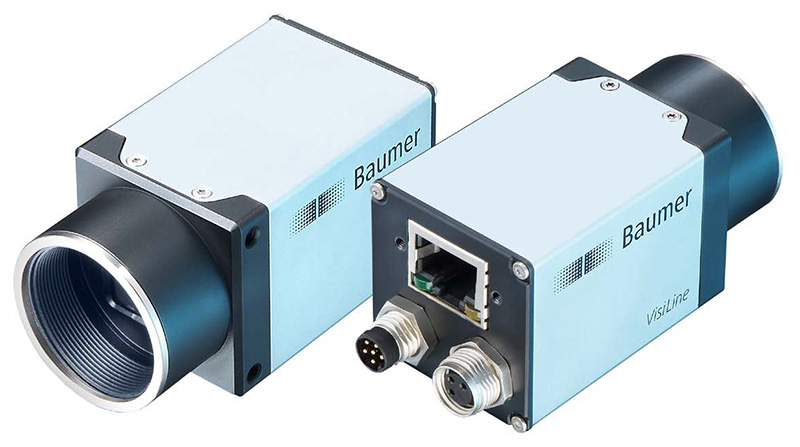

Product image of Baumer VLG-22

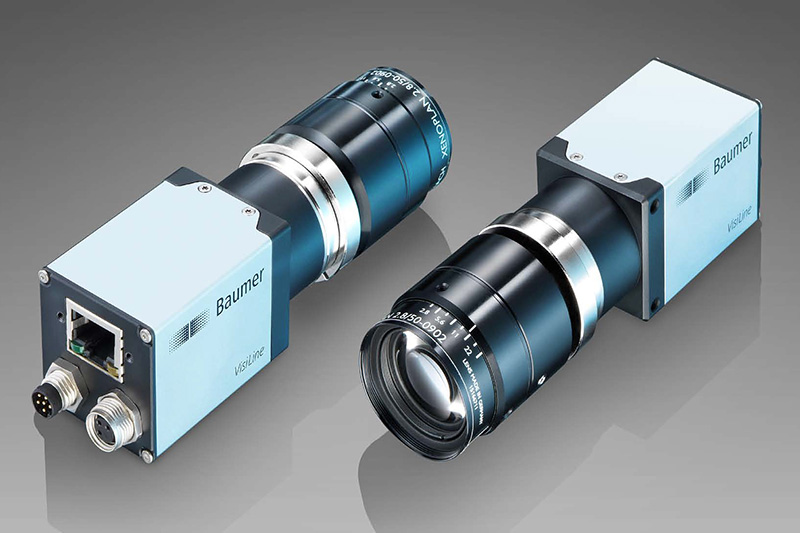

Product image of Baumer VLG-22
Product Photos

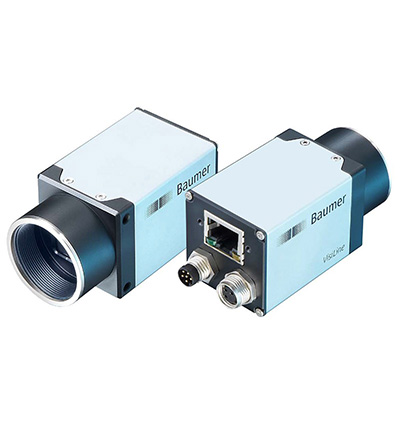

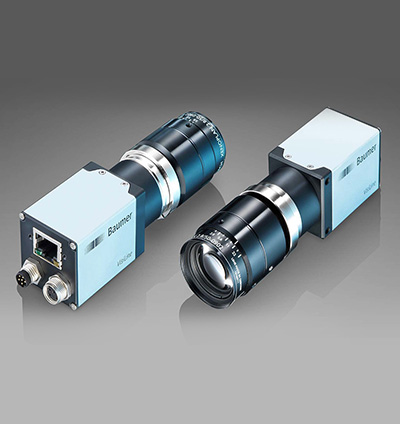

Product image of  Baumer VLG-22 Product image of  Baumer VLG-22

Quick Info for the Baumer VLG-22C

Camera Category: -
Camera Series: VisiLine
FPS: 55
Interface: GigE
Manufacturer: Baumer
Resolutions: 2.2 MP
Scanning Mode: -
Signal System: Digital Color
Technology: GigE Cameras

Quick Info for the Baumer VLG-22M

Camera Category: -
Camera Series: VisiLine
FPS: 55
Interface: GigE
Manufacturer: Baumer
Resolutions: 2.2 MP
Scanning Mode: -
Signal System: Digital Monochrome
Technology: GigE Cameras
