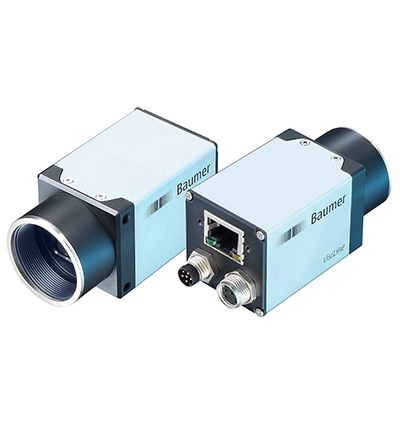

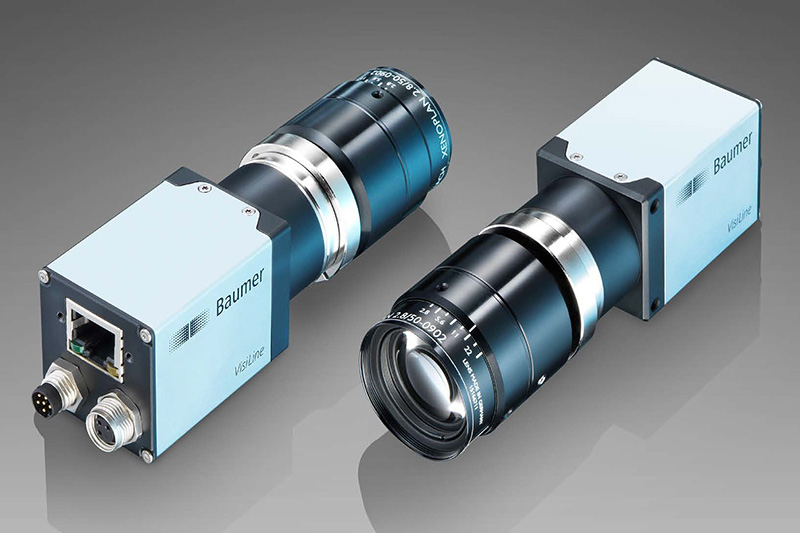

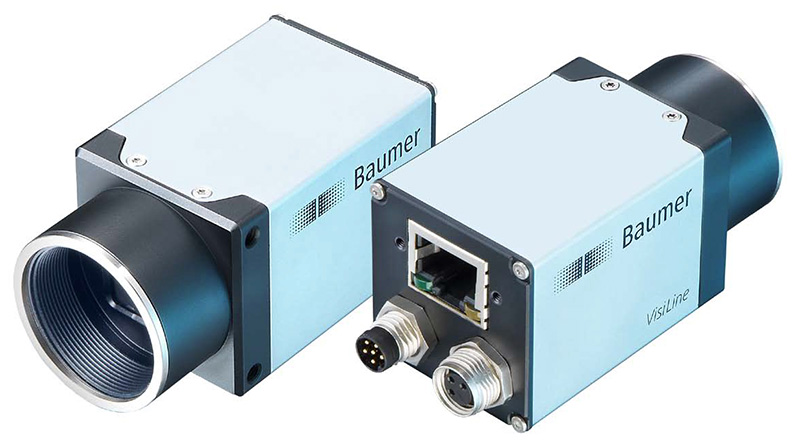

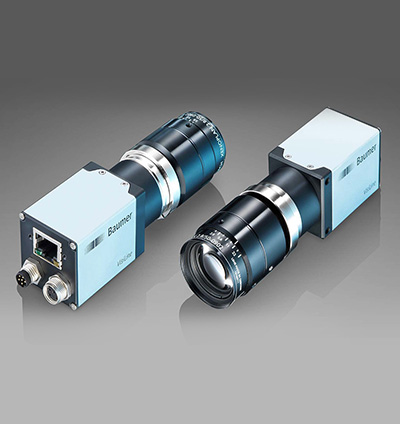

Baumer VLG-40 Camera

Baumer VLG-40 Camera - Digital Color Matrix, Gigabit Ethernet

With the new VisiLine^® camera series you can rely on innovative technologies and the proven quality of our successful TX series. Consistent further developments have made the cameras better in all areas: higher frame rates with even better image quality and more functionality.

For simplified solution of demanding image processing tasks, the cameras are equipped with a large number of technical features. For example, color comparison as well as FPN correction and HDR in the CMOS models facilitate efficient image analysis. Multi I/O, PoE and storable user sets also make it easy to integrate the cameras in your system.

FEATURES:

• Internal Buffer 120 MB (max. 30 images)
• Synchronization Free running, Trigger
• Trigger Sources Hardware, Software, ActionCommand, All or Off
• Trigger Delay 0 ... 2 sec, Tracking and buffering of up to 512 triggers
• Sequencer Automated control for series of images using different sets of parameters
• Sequencer Characteristics up to 128 sets of parameters, up to 65536 loop passes, up to 65536 repetitions of sets of parameters, up to 65536 images per trigger event
• Sequencer Parameters Exposure Time, Gain Factor, Output Line, ROI Offset x, ROI Offset y
• Digital I/Os 1 input line, 3 output lines

Download Product PDF:

• Baumer VLG-40 Camera

TECHNICAL INFORMATION:

• Sensor: CMOSIS CMV4000
• Type: 1" progressive scan CMOS
• Resolution: 2044 × 2044 px
• Frame rate max.: 29 fps
• Image formats: Full Frame, 2044 x 2044 px, max. 29.0 fps
• Pixel formats:
  Mono 8
  BayerRG8
  BayerRG12
  RGB8 Packed
  BGR8 Packed
  YUV411 Packed
  YUV422 Packed
  YUV444 Packed
• Analog controls: Gain (0 … 18 dB), Offset (0 … 255 LSB 12 Bit)
• Color models: RGB, YUV, Mono
• Internal buffer: 120 MB
• Synchronization: free running, trigger
• Trigger sources: Hardware, Software, ActionCommand
• Digital inputs: 3 output lines
• Data interface: Gigabit Ethernet, Transfer rate 1000 Mbits/sec, Fast Ethernet, Transfer Rate 100 Mbits/sec, Connector: 8P8C Modular Jack (RJ45), screw lock type
• Process interface: SACC-DSI-M8FS-3CON-M10-L180 SH
• Power supply: SACC-DSI-M 8MS-6CON-L180 SH
• Material: aluminium, IP 40
• Lens mount: C-mount
• Width: 33 mm
• Height: 33 mm
• Depth: 48 mm
• Weight: 90 g
• Voltage supply range +Vs:
  12 ... 24 VDC (external Power Supply)
  36 ... 57 VDC (Power over Ethernet)
• Power consumption:
  ca. 3.6 Watt @ 12 V DC und 29.0 fps
  ca. 3.8 Watt @ 48 V DC (PoE) und 29.0 fps
