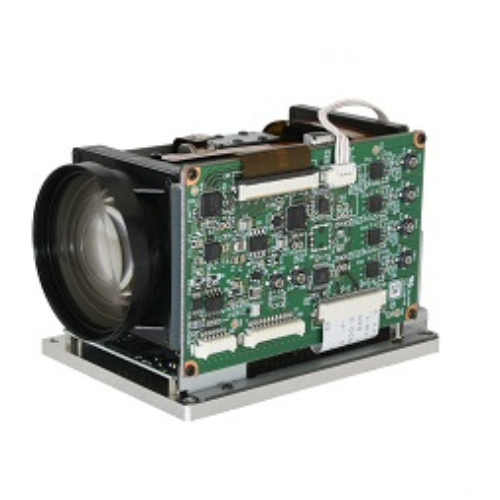

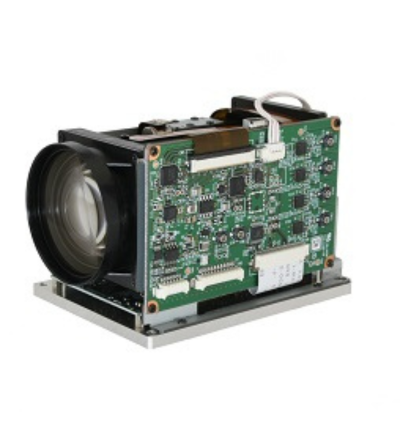

CIS DCC-4KZM Camera

The DCC-4KZM camera module offers exceptional 4K UHDTV resolution and an incredible x18 AF zoom capability. The DCC-4KZM incorporates the advanced "Clairvu™" ISP developed by CIS, which enables outstanding imaging quality and fast processing speeds. The DCC-4KZM features functions such as AE, auto-white balance, color correction, edge enhancement, noise reduction, gamma control, genlock, and more. These features allow the DCC-4KZM to be utilized in various machine vision applications, including broadcasting, ROV (Remotely Operated Vehicles), traffic surveillance, printing inspection, medical imaging, and other life science equipment and systems.

TECHNICAL INFORMATION:

• 4K (3840x2160) 60p camera using 1/1.8“ CMOS image sensor
• Features state-of-the-art Clairvu™ ISP for high quality image processing and accurate color reproduction
• 18x integrated zoom lens with AF and MF controls
• Complies with full NDI® for true broadcast quality imagery
• Control via Web UI, Newtek Studio Monitor, Web API/REST API and serial connection
• Integrated AE and AWB
• Supports output in 4K and FHD resolutions
• BT.2100 (HDR) /BT.2020 (Wide Color Gamut) ready
• Video monitor output/Stereo audio line input
• PoE+ / DC 5V operation
• Available as a kit or with casing (to be introduced later).
