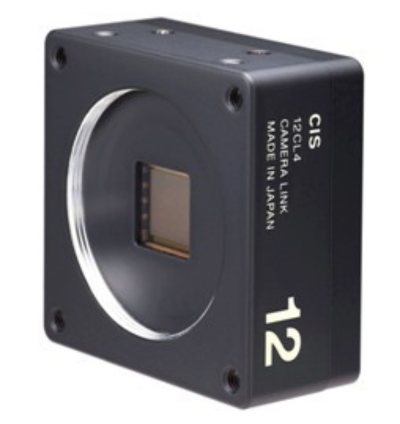

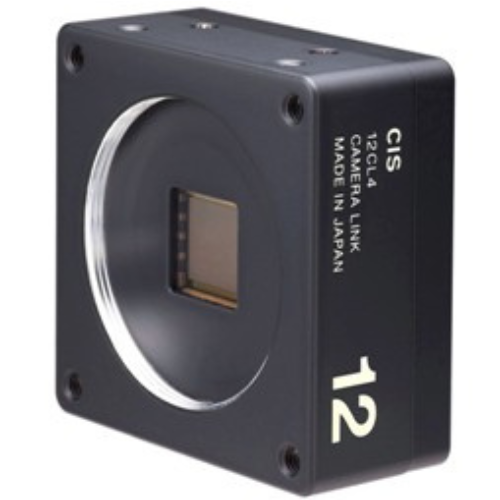

The VCC-12CL4R camera module features a Camera Link interface and offers a high resolution of 12M. It utilizes a 12.29M pixel, 1.1 type CMOS sensor with a diagonal length of 17.6mm. The entire pixel array can be read out at a remarkable speed of 1/53s with Full Configuration output.
TECHNICAL INFORMATION:
- Global shutter CMOS sensor
- Camera Link Base, Medium, Full, 8tap10bit, 10tap8bit are supported.
- Fixed trigger shutter mode and Pulse width trigger shutter mode
Quick Info for the CIS VCC-12CL4R
| Camera Series: | CL |
|---|---|
| Interface: | C Mount |
| Interface: | Camera Link |
| Manufacturer: | CIS |
| Resolutions: | 12 MP |
| Signal System: | Color |
