The VCC-3CL5M industrial camera module utilizes a Camera Link interface and offers a 3M resolution. It incorporates a 3M pixel, 1/1.8 type CMOS sensor. The entire pixel array (2064 x 1544) can be readout at an astonishing speed of 55 frames per second when using 3TAP output. Despite its compact 29mm cubic size and impressive 3M resolution, this camera remains cost-effective, making it a valuable choice for various industrial applications.


  • Camera settings can be set via serial command communications from the host equipment.
  • Global trigger shutter operation
  • Output bit length can be set, and output tap is selectable out of 1tap, 2tap, and 3tap.
  • ROI function
  • Sub-sampling function
  • Generates HV cross line signals
  • 29mm cubic in size

Request a Quote

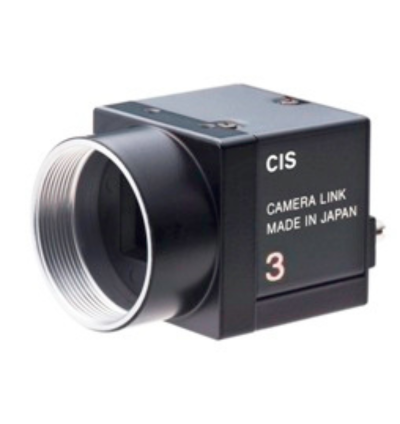

Product image of CIS VCC-3CL5M
Product Photos

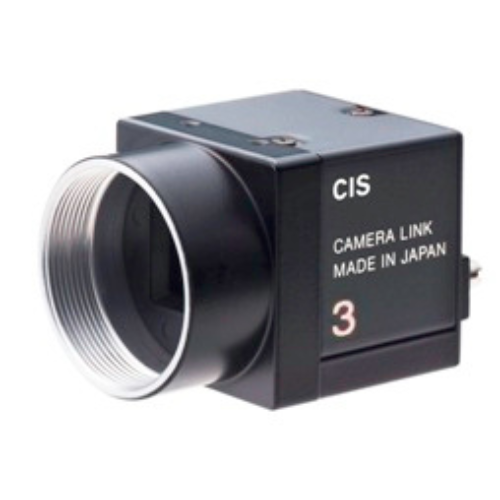

Product image of  CIS VCC-3CL5M

Quick Info for the CIS VCC-3CL5M

Camera Series: CL
Interface: Camera Link
Manufacturer: CIS
Resolutions: 3 MP
Signal System: Monochrome
