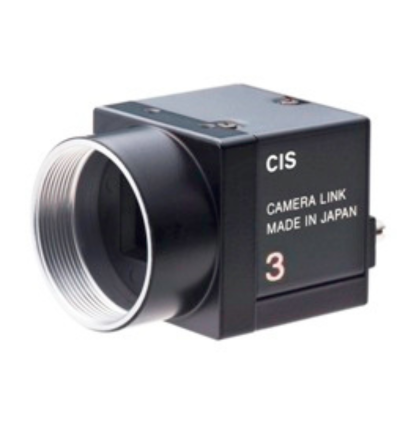

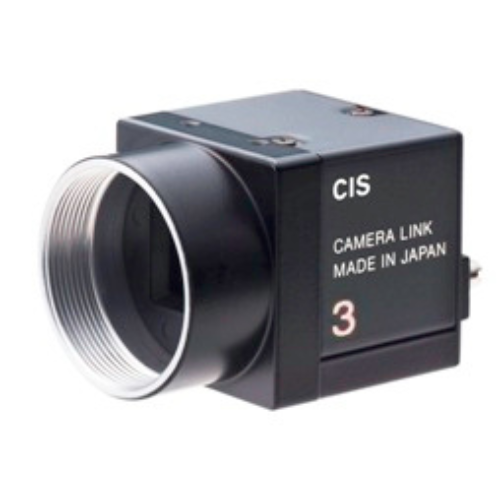

CIS VCC-3CL5R Camera

The VCC-3CL5R industrial camera module utilizes a Camera Link interface and offers a 3M resolution. It incorporates a 3M pixel, 1/1.8 type CMOS sensor. The entire pixel array (2064 x 1544) can be readout at an astonishing speed of 55 frames per second when using 3TAP output. Despite its compact 29mm cubic size and impressive 3M resolution, this camera remains cost-effective, making it a valuable choice for various industrial applications.

TECHNICAL INFORMATION:

• Camera settings can be set via serial command communications from the host equipment.
• Global trigger shutter operation
• Output bit length can be set, and output tap is selectable out of 1tap, 2tap, and 3tap.
• ROI function
• Sub-sampling function
• Generates HV cross line signals
• 29mm cubic in size
