The VCC-SXCL5M industrial camera module is equipped with a Camera Link interface and offers SXGA resolution. It features a 1.5M pixel, 1/2.9 type CMOS sensor. With its compact 29mm cubic size, this camera delivers a high-speed capability of 135.7 frames per second. Despite its impressive performance, it remains a cost-effective choice for various industrial applications.

TECHNICAL INFORMATION:

  • Global shutter type CMOS sensor
  • Camera Link 1tap/2tap/3tap selection, output clock selection, and output bit length selection
  • Trigger shutter mode: Fixed trigger shutter mode / Pulse width trigger shutter mode
  • High frame rate (135.7fps at entire frame, 515fps at binning)
  • Shading correction
  • Defective pixels correction by users
  • 29mm cubic in size
  • ROI function
  • Binning

Request a Quote

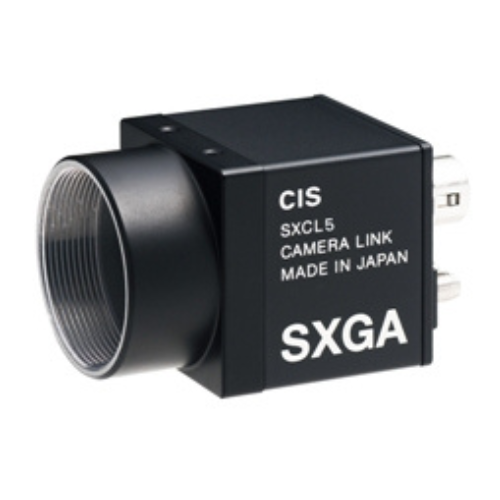

Product image of CIS VCC-SXCL5M
Product Photos

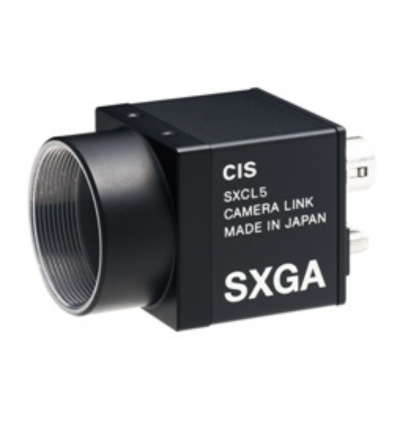

Product image of  CIS VCC-SXCL5M

Quick Info for the CIS VCC-SXCL5M

Camera Series: CL
Interface: Camera Link
Manufacturer: CIS
Resolutions: 1.3 MP
Signal System: Monochrome
