The VCC-VCL5R camera combines Camera Link interface with VGA resolution. It employs a 0.4M pixel, 1/2.9 type CMOS sensor. With a compact size of 29mm, it delivers high-speed capability, capturing up to 519 frames per second. Despite its impressive performance, this camera remains cost-effective, making it an ideal choice for various industrial applications.

TECHNICAL INFORMATION:

  • Global shutter type CMOS sensor
  • Camera Link 1tap/2tap/3tap selection, output clock selection, output bit length selection
  • Trigger shutter mode: Fixed trigger shutter mode / Pulse width trigger shutter mode
  • High frame rate (519fps at entire frame, 578fps at VGA)
  • Shading correction
  • Defective pixels correction by users
  • 29mm cubic in size
  • ROI function

Request a Quote

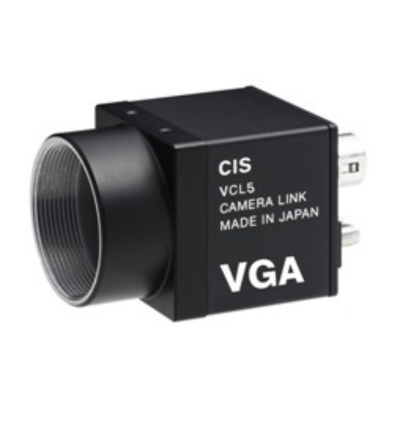

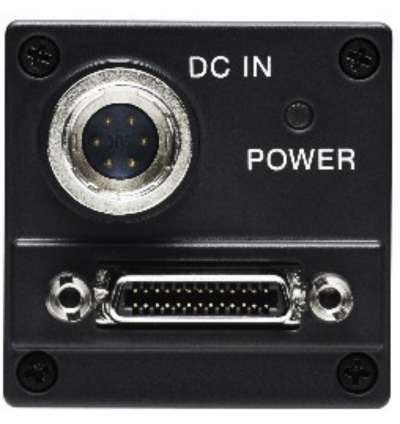

Product image of CIS VCC-VCL5R
Product image of CIS VCC-VCL5R
Product Photos
Product image of  CIS VCC-VCL5R Product image of  CIS VCC-VCL5R

Quick Info for the CIS VCC-VCL5R

Camera Series: CL
FPS: -
Interface: C Mount
Manufacturer: CIS
Resolutions: Under 1 MP
Signal System: Color
