CIS VCC-127CXP6M Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the CIS VCC-127CXP6M

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

The VCC-127CXP6M camera boasts an impressive resolution of 127 million pixels. The VCC-127CXP6M also features a cost-effective, compact size, measuring 100mm (H) x 100mm (W) x 100mm (D). The VCC-127CXP6M is fully compatible with CoaXPress Version 1.1.1 and enables data transfers of up to 40m with CXP-6.
With features such as a trigger shutter, ROI, 2x2 binning, defective pixel correction, Gain, shading correction, black level adjustment, flat field correction, gamma correction, and PoCXP support, the VCC-127CXP6M is ideal for various Machine Vision inspection systems, measurement, archive, research and observation, and medical and life science imaging systems.


  • Global shutter, CMOS sensor
  • CoaXPress CXP-6, CXP-12
  • 1 lane, 2 lanes
  • PoCXP
  • Approx. 40m of Max. cable length at CXP-6
  • ROI
  • Exposure and Gain settings
  • Flat field correction
  • External trigger mode
  • GenICam complied
  • M72 mount

Request a Quote

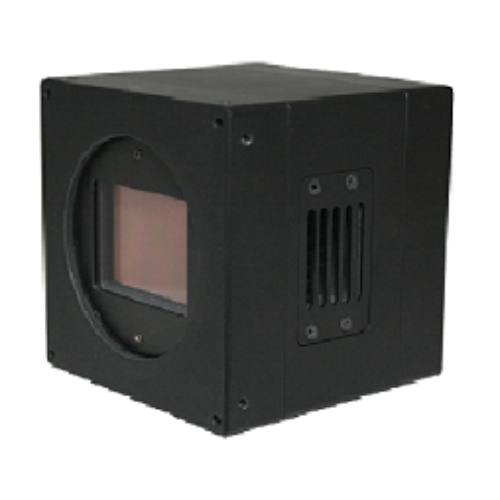

Product image of CIS VCC-127CXP6M
Product Photos

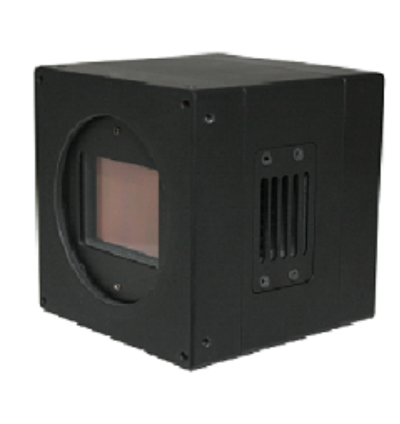

Product image of  CIS VCC-127CXP6M

Quick Info for the CIS VCC-127CXP6M

Camera Category: -
Camera Series: CXP
Format: 3.6
FPS: 4.6Hz
Interface: CoaXPress
Manufacturer: CIS
Resolutions: 127 MP
Sensor: Sony IMX661
Shutter: Global
Signal System: Monochrome
Technology: Area Scan Cameras
Technology: Coaxpress Cameras
