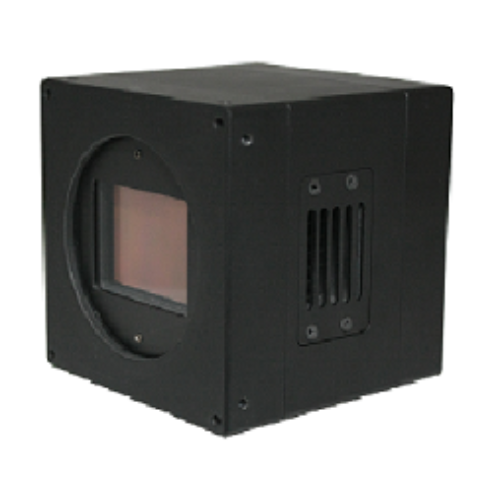

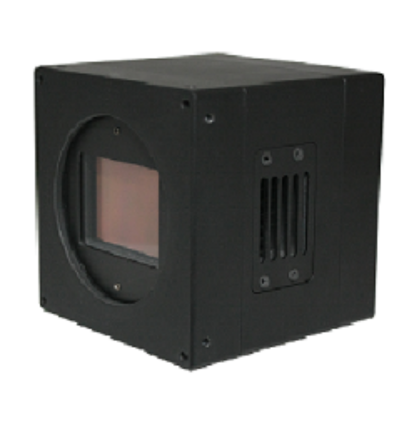

CIS VCC-127CXP6R Camera

The VCC-127CXP6R camera boasts an impressive resolution of 127 million pixels. The VCC-127CXP6R also features a cost-effective, compact size, measuring 100mm (H) x 100mm (W) x 100mm (D). The VCC-127CXP6R is fully compatible with CoaXPress Version 1.1.1 and enables data transfers of up to 40m with CXP-6.
With features such as a trigger shutter, ROI, 2x2 binning, defective pixel correction, Gain, shading correction, black level adjustment, flat field correction, gamma correction, and PoCXP support, the VCC-127CXP6R is ideal for various Machine Vision inspection systems, measurement, archive, research and observation, and medical and life science imaging systems.

TECHNICAL INFORMATION:

• Global shutter, CMOS sensor
• CoaXPress CXP-6, CXP-12
• 1 lane, 2 lanes
• PoCXP
• Approx. 40m of Max. cable length at CXP-6
• ROI
• Exposure and Gain settings
• Flat field correction
• External trigger mode
• GenICam complied
• M72 mount
