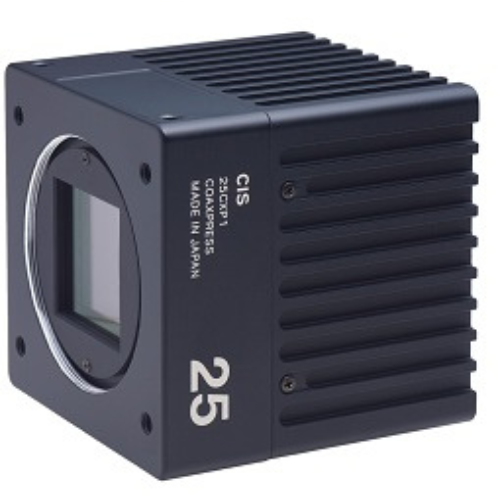

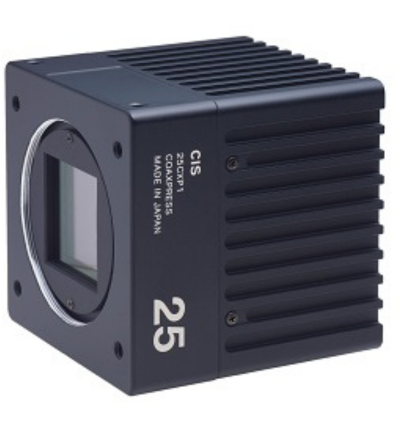

The VCC-25CXP1M camera is capable of incredible long distance data transmission with CXP-6 x 4lane.
Near IR model (VCC-25CXP1NIR), model with binning mode function (VCC-25CXP1MBN), and model with clear glass filter (VCC-25CXP1R-C) are available.
TECHNICAL INFORMATION:
- 25M High resolution
- Global shutter type CMOS

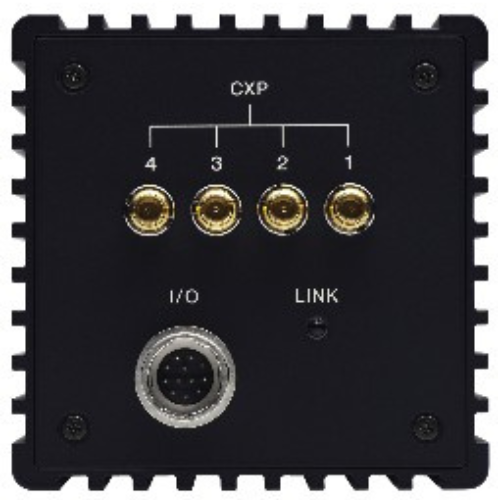

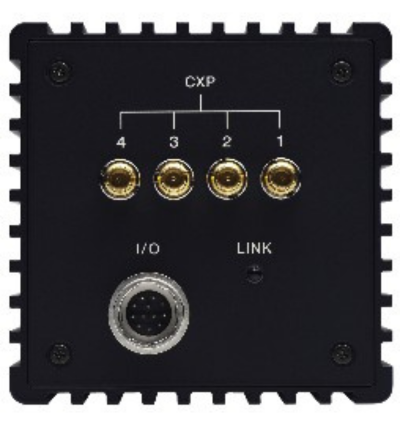

- CoaXPress interface (CXP 6 x 4 lane)
- DIN connector
- Long distance data transmission (to be complied to CXP Ver 1.1.1)
- Max.81fps (CXP-6x4/R model)
- Must have features ready for FA applications; Global trigger shutter operation, ROI function, Sub-sampling, Defective pixel correction, Sequence control and more.
- Near-infrared camera VCC-25CXP1NIR, model with binning mode function VCC-25CXP1MBN, and model with clear glass filter VCC-25CXP1R-C are available.
Quick Info for the CIS VCC-25CXP1M
| Camera Category: | - |
|---|---|
| Camera Series: | CXP |
| Format: | APS-H |
| FPS: | 81 |
| Interface: | CoaXPress |
| Manufacturer: | CIS |
| Resolutions: | 25 MP |
| Sensor: | ON Semi PYTHON 25K |
| Shutter: | Global |
| Signal System: | Monochrome |
| Technology: | Area Scan Cameras |
| Technology: | Coaxpress Cameras |
