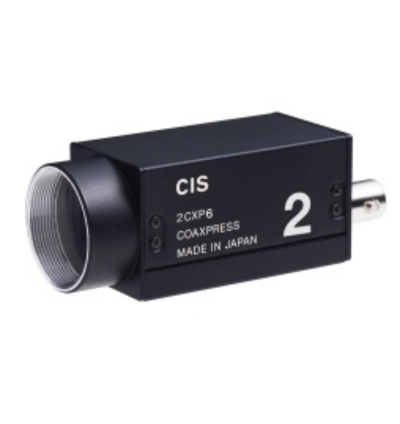

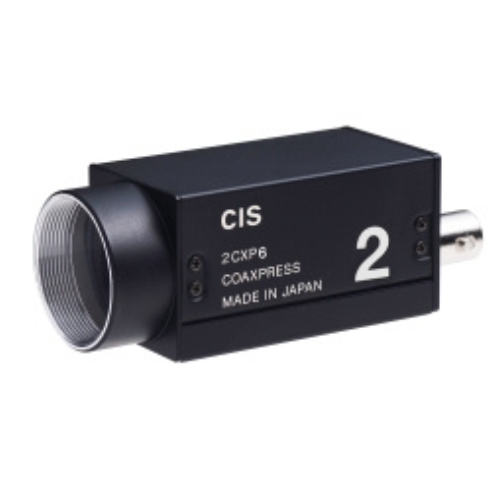

The CoaXPress I/F 2M camera uses a 1/1.7 type Sony Pregius CMOS sensor, compatible with both CXP-3 and CXP-6. It achieves a 2M pixel resolution with a frame rate of 239fps at CXP-6, 8bit. Equipped with features like an external trigger mode, adjustable exposure and gain, eight vertical ROI settings, 2x2 binning (B/W model), black level adjustment, and defective pixel correction, it is an excellent choice for Factory Automation and machine vision applications.
TECHNICAL INFORMATION:
- Small footprint: 29mm(H) x 29mm(W) x 55mm(D)
- Global shutter type CMOS sensor
- CoaXPress CXP-3/CXP-6 are supported.
- Exposure and Gain settings
- External trigger mode (Fixed trigger shutter mode / Pulse width trigger shutter mode)
- GenICam complied
- C mount
Quick Info for the CIS VCC-2CXP6M
| Camera Series: | CXP |
|---|---|
| Format: | 1/1.7 |
| FPS: | 97 |
| Interface: | CoaXPress |
| Manufacturer: | CIS |
| Resolutions: | 2 MP |
| Sensor: | Sony IMX422 |
| Shutter: | Global |
| Signal System: | Monochrome |
| Technology: | Area Scan Cameras |
| Technology: | Coaxpress Cameras |
