The VCC-5CXP3R is a robust CoaXPress interfaced small B/W camera utilizing a 1 type, 5.3M pixels CMOS image sensor, with a long distance data transmission, high-resolution, and high-speed frame rate.


  • High resolution
  • 29x29x50mm in size
  • CMOS sensor
  • CoaXPress interface (CXP 6 x 1 lane)
  • Video output via BNC connector
  • Long distance data transmision (to be complied to CXP Ver 1.0)
  • High resolution and high speed frame rate
  • 5.3M pixels resolution with R:85fps at CXP6 x 1 lane
  • Must have features ready for FA applications
  • Global trigger shutter operation
  • ROI function, Sub-sampling, Defective pixel correction, Sequence control and more
  • NIR model VCC-5CXP3NIR is also available

Request a Quote

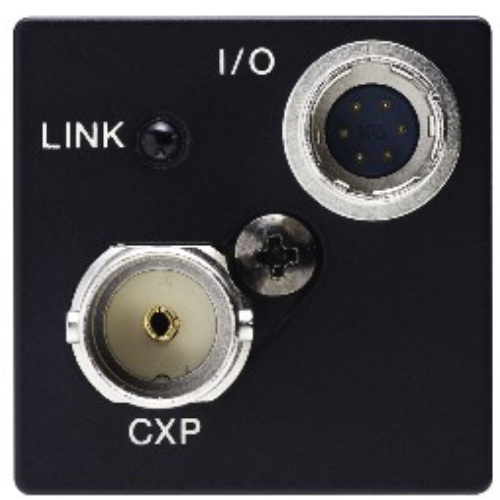

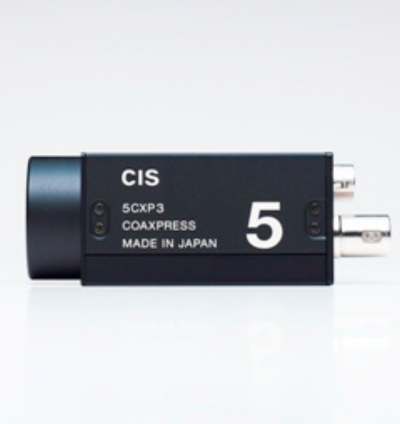

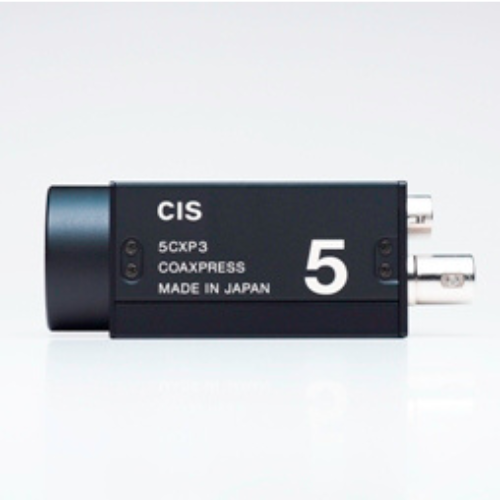

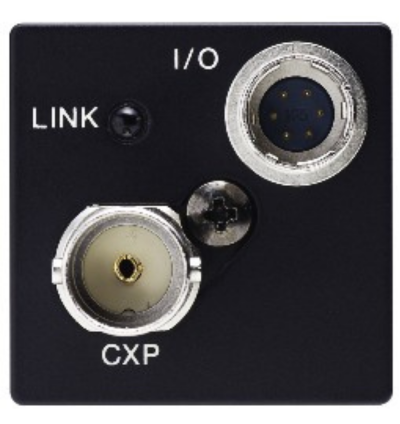

Product image of CIS VCC-5CXP3R
Product image of CIS VCC-5CXP3R
Product Photos
Product image of  CIS VCC-5CXP3R Product image of  CIS VCC-5CXP3R

Quick Info for the CIS VCC-5CXP3R

Camera Series: CXP
Format: 1
FPS: 85
Interface: CoaXPress
Manufacturer: CIS
Resolutions: 5 MP
Sensor: ON Semi PYTHON 5000
Shutter: Global
Signal System: Color
Technology: Area Scan Cameras
Technology: Coaxpress Cameras
