The VCC-5CXP4R camera comes equipped with a 5-megapixel resolution and utilizes the CoaXPress interface. It fully complies with CoaXPress Version 1.1.1. The VCC-5CXP4R includes essential functions, including trigger shutter, ROI, horizontal and vertical flip, defective pixel correction, as well as Gain and Gamma correction, making it ideal for various Machine Vision inspection applications.

TECHNICAL INFORMATION:

  • Global shutter, CMOS sensor
  • CoaXPress CXP-3, CXP-6
  • 1 lane, 2 lanes
  • ROI
  • Exposure and Gain settings
  • External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
  • GenICam complied
  • PoCXP / External power supply is selectable
  • C mount


Request a Quote

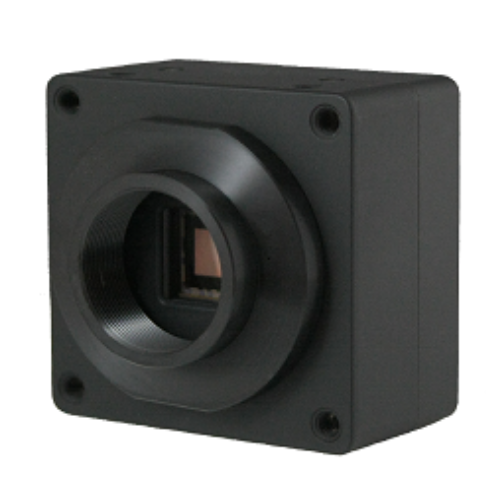

Product image of CIS VCC-5CXP4R
Product Photos

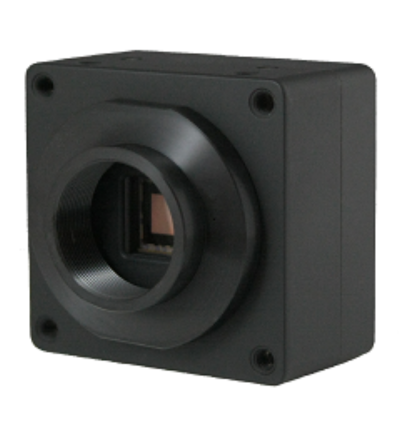

Product image of  CIS VCC-5CXP4R

Quick Info for the CIS VCC-5CXP4R

Camera Series: CXP
Format: 2/3
FPS: 108
Interface: CoaXPress
Manufacturer: CIS
Resolutions: 5 MP
Sensor: Sony IMX250
Shutter: Global
Signal System: Color
Technology: Area Scan Cameras
Technology: Coaxpress Cameras
