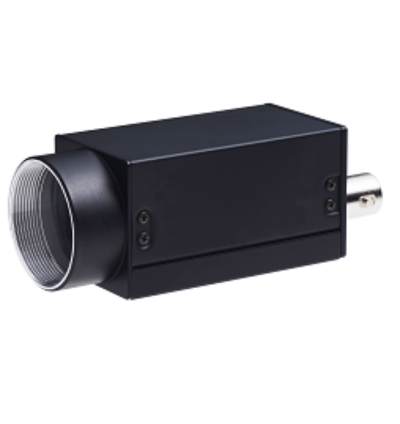

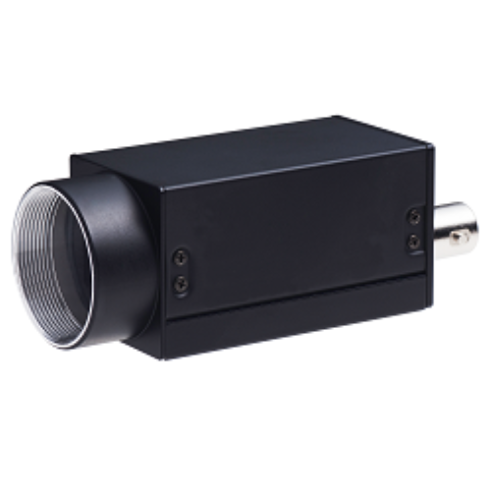

CIS VCC-5CXP7M Camera

The VCC-5CXP7M features a resolution of 5m pixels and utilizes the CoaXPress interface. It has a compact size, measuring 29mm in height, 29mm in width, and 55mm in depth. It is equipped with essential functions for Machine Vision applications, including trigger shutter, ROI, 2x2 binning (only for black and white models), defective pixel correction, shading correction, as well as Gain and Gamma correction functions. With data transfer up to approximately 30 meters, this camera is suitable for a variety of FA/Machine Vision inspection systems.

TECHNICAL INFORMATION:

• CoaXPress CXP-3, CXP-6
• 1 lane
• Approx. 30m of Max. cable length
• ROI
• Exposure and Gain settings
• External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
• GenICam complied
• C mount
