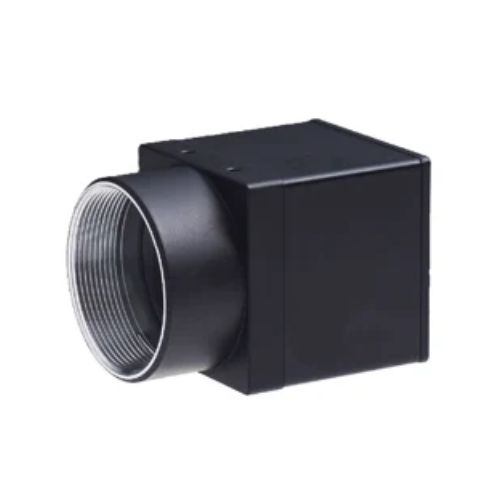

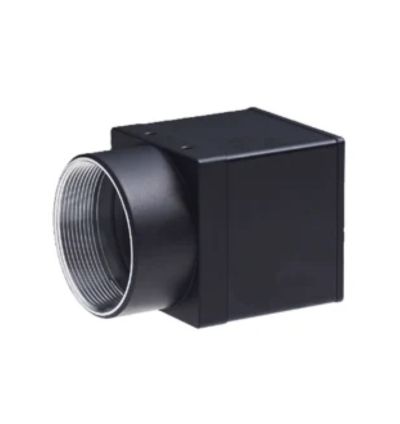

The VCC-5U101M is a compact machine vision camera designed for FA applications, featuring a 2/3-inch CMOS sensor housed in a 29 mm square body. With a high frame rate of 187 fps and support for external trigger mode, ROI, and binning functions, it delivers precise and efficient imaging. Its USB 3.2 interface eliminates the need for a frame grabber, allowing image transmission, camera control, and power supply through a single USB cable. This streamlined setup provides a simple, cost-effective solution for high-speed image processing in industrial automation and inspection systems.
TECHNICAL INFORMATION:
- Compact 29 mm square body
- Global shutter CMOS sensor
- USB 5 Gbps / 10 Gbps
- USB 3.2 Gen 2x1
- Single USB cable for image transmission, camera control, and power supply
- ROI and binning functionality
- External trigger mode support
- C-mount
Quick Info for the CIS VCC-5U101M
| Camera Category: | CXP |
|---|---|
| Camera Series: | CXP |
| FPS: | 187 |
| Interface: | USB3 Vision |
| Manufacturer: | CIS |
| Resolutions: | 5 MP |
