The compact and economically designed CXP I/F camera utilizes a 1/2 type global shutter CMOS sensor to provide reliable and consistent image quality. It offers a remarkable data transmission distance of up to 100 meters at the CXP-1 speed. With dimensions just measuring a 29mm cube, the camera manages to provide a resolution of 1.3 million pixels. It further achieves a frame rate of 168.5fps at the CXP-3 speed when the Region of Interest (ROI) is switched off. It comes equipped with essential features like an external trigger mode, exposure adjustment, gain setting, ROI, sub-sampling, sequence control, shading correction, and defective pixel correction functionality. This makes it particularly suitable for Factory Automation (FA) and machine vision applications.

TECHNICAL INFORMATION:

  • 29mm cubic in size.
  • Global shutter CMOS sensor
  • CoaXPress interface (CXP1, 2, and 3)
  • Video output via BNC connector
  • Long distance data transmission (to be complied to CXP Ver 1.0)
  • CXP1, CXP2, and CXP3 output are selectable
  • 1.3M pixels resolution with 175fps at CXP3 output
  • Must have features ready for FA applications
  • Global trigger shutter operation
  • ROI function, Sub-sampling, Defective pixel correction and more
  • NIR model: VCC-SXCXP3NIR
  • Without IR cut filter model: VCC-SXCXP3RNON

Request a Quote

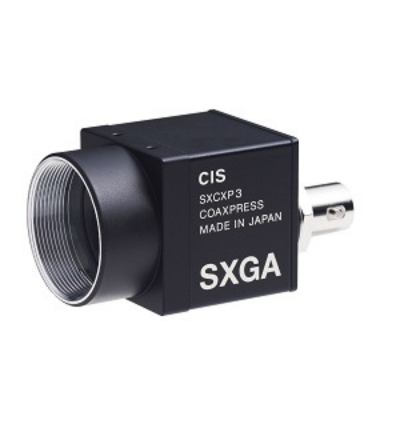

Product image of CIS VCC-SXCXP3M
Product Photos

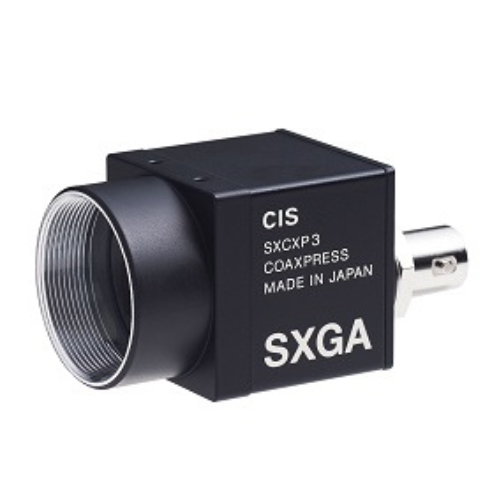

Product image of  CIS VCC-SXCXP3M

Quick Info for the CIS VCC-SXCXP3M

Camera Series: CXP
Format: 1/2
FPS: 150
Interface: CoaXPress
Manufacturer: CIS
Resolutions: 1.3 MP
Sensor: ON Semi PYTHON 1300
Shutter: Global
Signal System: Monochrome
Technology: Area Scan Cameras
Technology: Coaxpress Cameras
