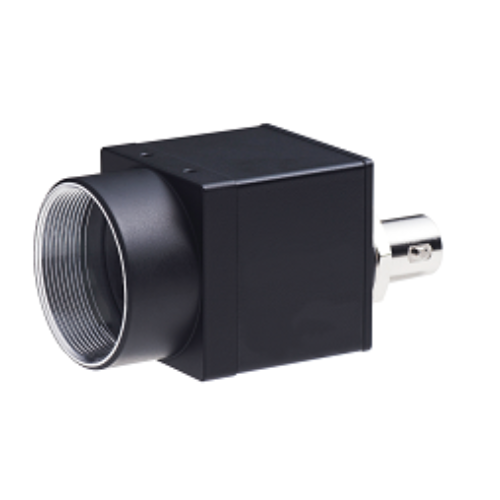

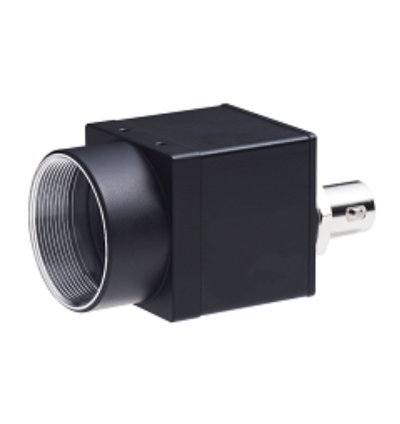

CIS VCC-SXCXP5M Camera

The compact and economically efficient CXP I/F camera is integrated with a 1/2.9 type global shutter CMOS sensor to provide unparalleled image quality. It possesses an impressive data transmission range of up to 30 meters. Despite its modest dimensions of a 29mm cube, the camera delivers a remarkable resolution of 1.6 million pixels, reaching a frame rate of 276fps at the CXP-6 speed when the Region of Interest (ROI) is deactivated.

The camera comes fully equipped with key functionalities including an external trigger mode, exposure and gain adjustments, ROI, horizontal and vertical flip, as well as corrective features such as defective pixel correction, shading correction, gamma correction, and Power over CoaXPress (PoCXP).

These attributes allow the camera to operate effectively in Factory Automation (FA) and machine vision applications, providing reliable performance and value for investment.

TECHNICAL INFORMATION:

• CoaXPress CXP-3, CXP-6
• 1 lane
• Approx. 30m of Max. cable length
• ROI
• Exposure and Gain settings
• External trigger mode (Fixed trigger shutter mode/Pulse width trigger shutter mode)
• GenICam complied
• C mount
