VCC F22U29CL is a small color CCD C mount camera.

This UXGA high resolution camera has an external trigger shutter and a mini camera link output. A partial scan function camera with speeds of up to 360fps in the VGA version, the VCC F22U29CL is one of the fastest color cameras available.


  • UXGA Resolution
  • Color RAW
  • 1/2" Progressive CCD Sensor
  • 20 fps
  • External Trigger

Download Product PDF:


  • Resolution: UXGA
  • Sensor Type: 1/1.8” SONY ICX 274AQ CCD
  • Frame Rate: 20 FPS
  • Power Consumption: 2.7W
  • Input Voltage:DC+12V ±10% (Max 15V)
  • Operating Conditions: 0? ~40? @ 20~80% HUMIDITY
  • Weight: Approx. 50g
  • Lens Mount: C Mount
  • Optical Axis Accuracy: Less than (Pixel Center) ±0.6mm
  • Video Output Signal: Digital 8/10bit (switchable)
  • Effective Number of Pixels:1628(H)×1236(V)
  • Horizontal Scan Frequency: 25.568KHz
  • Pixel Clock: 49.090 MHz
  • Pixel Size: 4.4×4.4(µm)
  • Minimum Illumination: F1.4 20lx
  • Sensitivity: F8.0 2000lx
  • Standard Color Temperature: 3200°K
  • Gain: 0dB, +6dB, MANUAL (-1dB - +12dB)
  • Electronic Shutter: OFF~1/18000sec
  • SYNC. Method: --
  • External Trigger: Fixed Shutter Exposure/Pulse Width Exposure
  • Partial Scan: N/A
  • Gamma Compensation: Default OFF (Optional 0.45)
  • Control Interface: CAMERA LINK/RS232C

Request a Quote

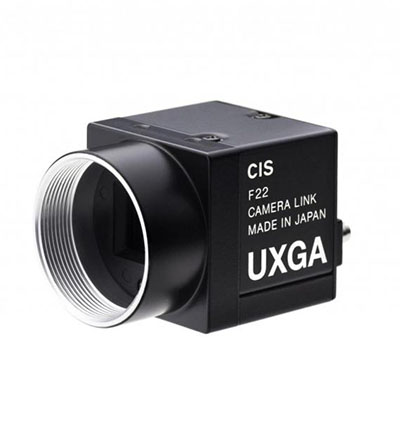

Product image of CIS VCC-F22U29CL
Product Photos

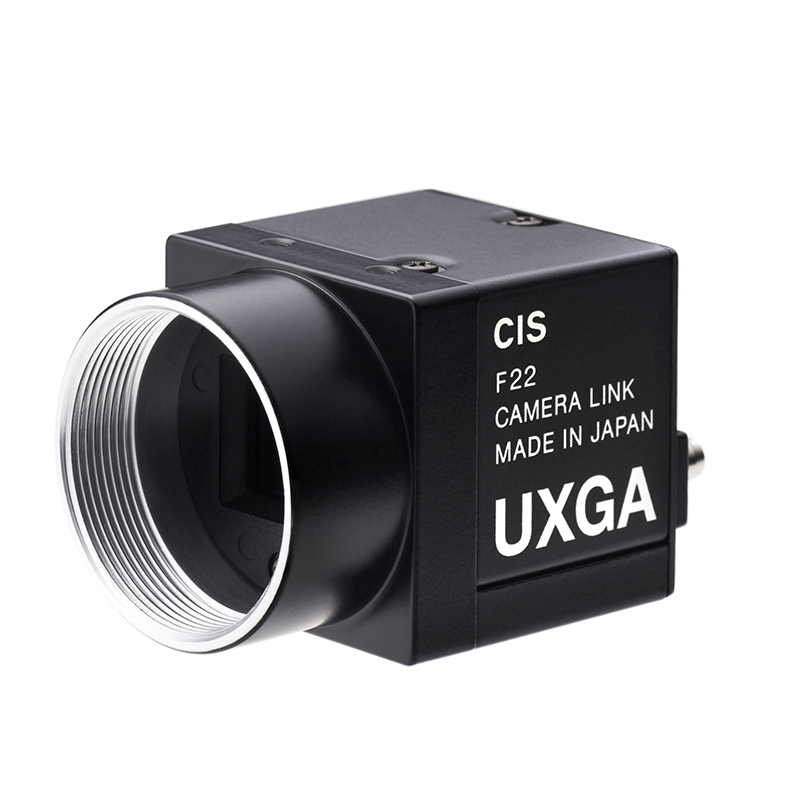

Product image of  CIS VCC-F22U29CL

Quick Info for the CIS VCC-F22U29CL

Camera Category: Area Scan
Camera Series: VCC-F
FPS: 20
Interface: Camera Link
Manufacturer: CIS
Resolutions: 2.2 MP
Scanning Mode: Progressive Scan
Signal System: Color
Technology: Camera Link Cameras
