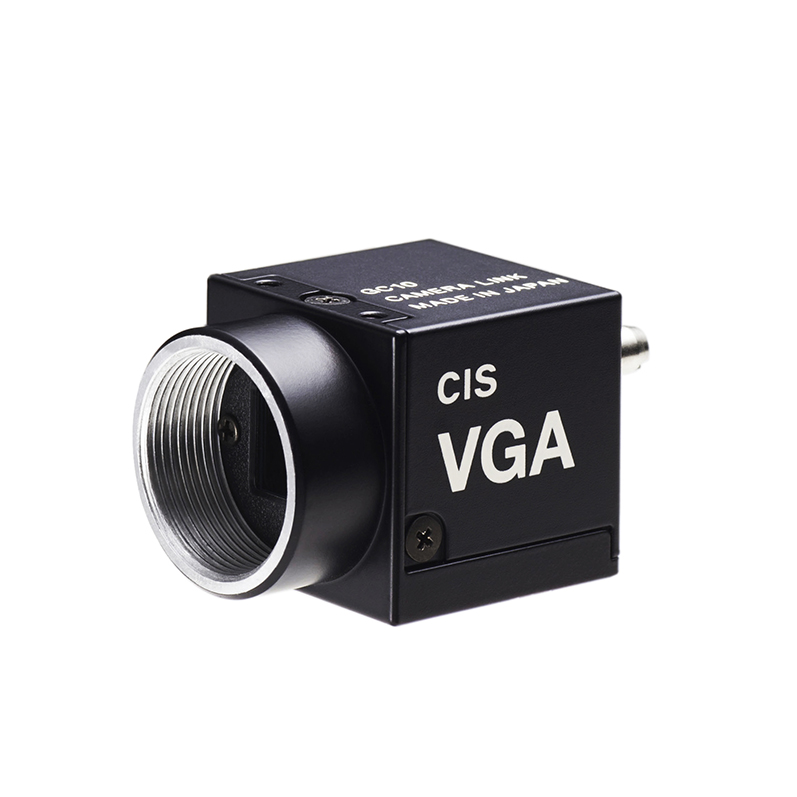

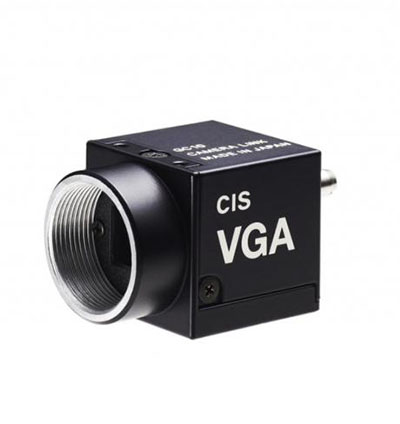

CIS VCC-GC10V31L Camera

VCC-GC10V31L can reduce total system cost.

VCC-GC10V31L is only 22mm cubic in size (excluding projection), ultra light weight 19g, and low power consumption makes it a best match for use in embedded systems which used to have remote-head cameras.

With 14 pins thin cable, total system cost can be reduced. VCC-GC10V31L is an industrial B/W digital video camera module utilizing a 1/3, global shutter type, CMOS. At full frame scan mode, entire pixels can be read out within approx. 1/60s.

Interface of VCC-GC10 series comply with a camera link standard, the one to be determined as PoCL-Lite.

FEATURES:

• Only 22mm cubic in size, 19g
• Low Power Consumption
• NF Lens Mount
• Global Shutter CMOS
• External Trigger
• Partial Scan

Download Product PDF:

• CIS VCC-GC10V31L Camera

TECHNICAL INFORMATION:

• Resolution: VGA
• Sensor Type:1/3 TYPE CMOS (Global Shutter)
• Power Consumption: 0.65W
• Input Voltage:DC+12V ±10% (Max 15V)
• Operating Conditions: 0 ~40 @ 20~80% HUMIDITY
• Weight: Approx. 19g
• Lens Mount: F Mount
• Frame Rate: 60 fps
• Video Output Signal: Digital 10 bit
• Effective Number of Pixels: 752(H)×480(V)
• Horizontal Scan Frequency: 31.4685kHz
• Pixel Clock: 24.5454 MHz
• Pixel Size: 6.0×6.0 (μm)
• Minimum Illumination: F1.4 1 lx
• Sensitivity: F5.6 400lx
• Gain Switching: 0dB~+12dB
• Sync Method: Internal Sync.
• Trigger Mode: Fixed Trigger Shutter Mode, Pulse Width Trigger Shutter Mode
• Partial Scan: Full Frame Scan Mode, 1/2 Partial Scan Mode, 1/4 Partial Scan Mode, and 1/6 Partial Scan Mode
• Gamma Compensation: 1 (Fixed)
• Control Interface: PoCL-Lite
• Dimensions: 22mmx 22mmx 22mm (excluding projection)
