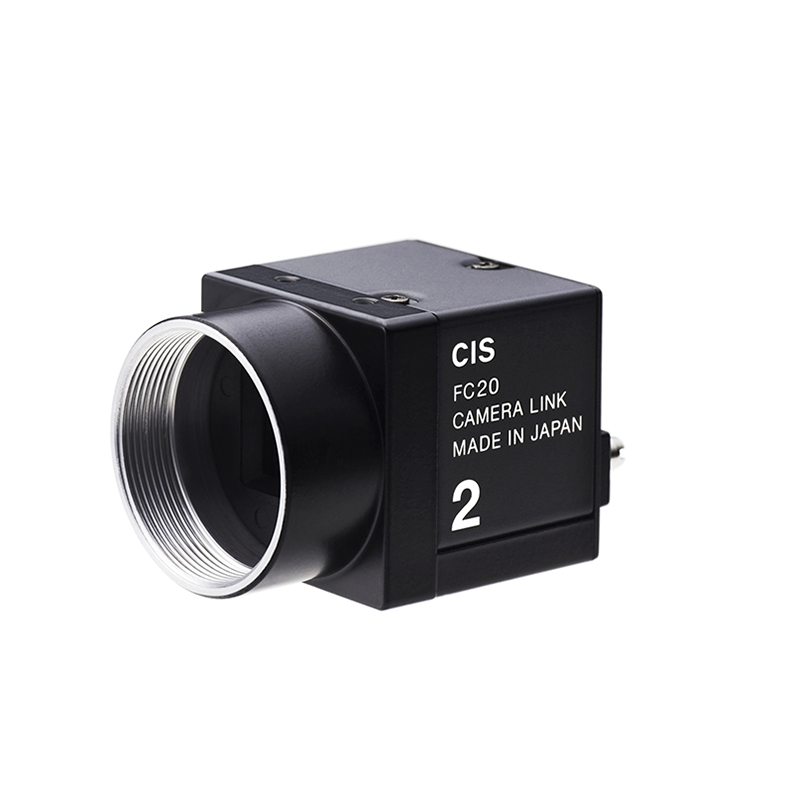

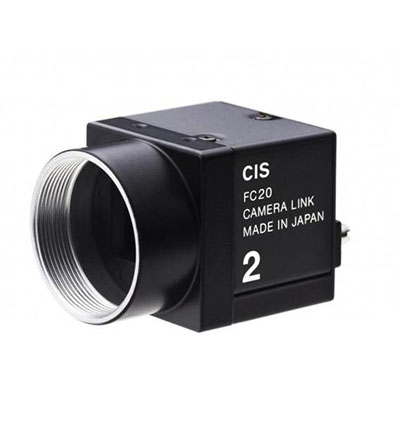

CIS VCC-GC20U11CL/PCL Camera

VCC-GC20U11CL is an industrial B/W high-speed digital video camera module utilizing a global shutter type, 2/3 type 2M pixels CMOS sensor.

Interface of GC20U11CL complies with camera link (Base Configuration) with its resolution 2.2M pixels. Entire pixels can be read out within approx. 1/70s.

FEATURES:

• High frame rate, 70.73 fps, at full frame scan mode with Camera Link Base Configuration.
• 29mm cubic in size (excluding projection)
• Camera Link 2Tap output (Base Configuration)
• 8bit / 10bit selectable
• External Trigger
• Shutter Speed: 1/500s ~1/50,000s
• Fixed Trigger Shutter Mode
• Pulse Width Trigger Shutter Mode
• Partial Scan Mode (Vertical)

Download Product PDF:

• CIS VCC-GC20U11CL/PCL Camera

TECHNICAL INFORMATION:

• Resolution: UXGA
• Frame Rate: 70 fps
• Resolving Power: 8 bit / 10 bit
• Power Consumption: 2 W
• Input Voltage: DC+12V±10%
• Effective Number of Pixels: 2048 (H)×1088 (V)
• Horizontal Scan Frequency: 77.66 kHz
• Pixel Clock: 79.99 MHz
• Minimum Illumination: F1.4 1.6 lx
• Sensitivity: F8 400 lx
• Shutter: OFF(1/70s) ~ 1/50,000s
• Gamma Compensation: 1.0 (fixed)
• Gain: Analog Gain: 0 ~ ±12 dB / Digital Gain: + 0.1dB/step
• Sync Method: Internal Sync / External Trigger
• Lens Mount: C Mount
• Video Output: Camera Link 2Tap output (Base Configuration)
• Weight: Approx 50g
• Dimensions: 29mmx 29mmx 29mm (excluding projection)
