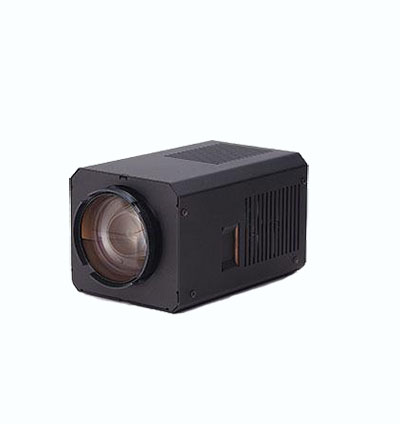

CIS VCC-HD10ZM Camera

CIS VCC-HD10ZM offers superb imaging quality and high speed processing

With x18 zoom auto focus lens attached, it features CIS original ISP, state-of-the-art "ClairvuTM"+, for superb imaging quality and high speed processing (1920x1080@60fps). High quality images almost equivalent to 3 CCD camera in a compact foot print, 60x55x98.8mm. In addition to AE, auto white balance, color correction, edge enhancement, noise reduction, and gamma control function, 3DNR, HDR, shading correction, Gen Lock, OSD, time code, and more. We are happy to customize to make it suitable for your application.

Best suited for high image quality conscious applications such as medical, broadcasting, live image filming, ITS, UAV, ROV and others. Please refer to our specifications manual to learn more.

More CIS Full HD and 4K products, focused on high image quality, high resolution and high sensitivity/NIR in a compact footprint, are under design development.

Download Product PDF:

• CIS VCC-HD10ZM Camera

TECHNICAL INFORMATION:

Video output format

• 1920x1080p: 60fps, 59.94fps,50fps , 30fps, 29.97fps, 25fps, 24fps, 23.97fps
• 1920x1080i: 60fps, 59.94fps, 50fps
• 1280x720p: 60fps, 59.94fps, 50fps

Image sensor

• 1/3 inch type CMOS 1944x1213 2.75μm x 2.75μm

Signal I/F

• 3G-SDI·HD-SDI, Y/Pb/Pr (4:2:2 10bit) BNC 75Ω terminal

Sensitivity

• F5.6 2000lx

Min. Illumination

• F1.6 1.5lx

Power requirement and power consumption

• DC+10~+15V
• 6.5W typ at DC+12V In

Lens

• X18 zoom·auto focus lens attached, focal length:fw=4.7mm, ft=84.6mm

Dimensions and weight

• 60(W)x55(H)x98.8(D)mm / approx. 270g

Function

• x 18 zoom, AF, 3DNR,HDR, AGC, shading correction, variable shutter speed, AWB, flicker cancel, edge enhancement, color correction, color saturation adjustment, color compression, noise reduction, gamma correction, pedestal adjustment, color balance, LTC, GenLock, OSD, Day and Night function, and more

Quality Standard

• Comply to UL, RoHS, CE, and FCC Class A

Operation conditions

• -5 ~+45°C with 20~80%RH with no condensation
