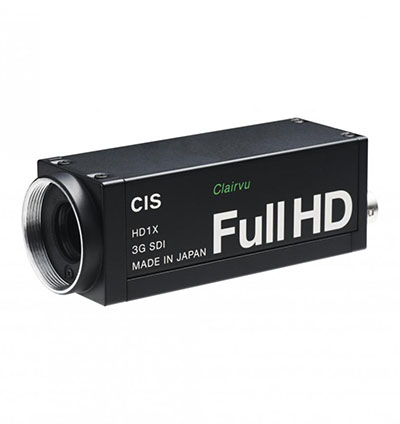

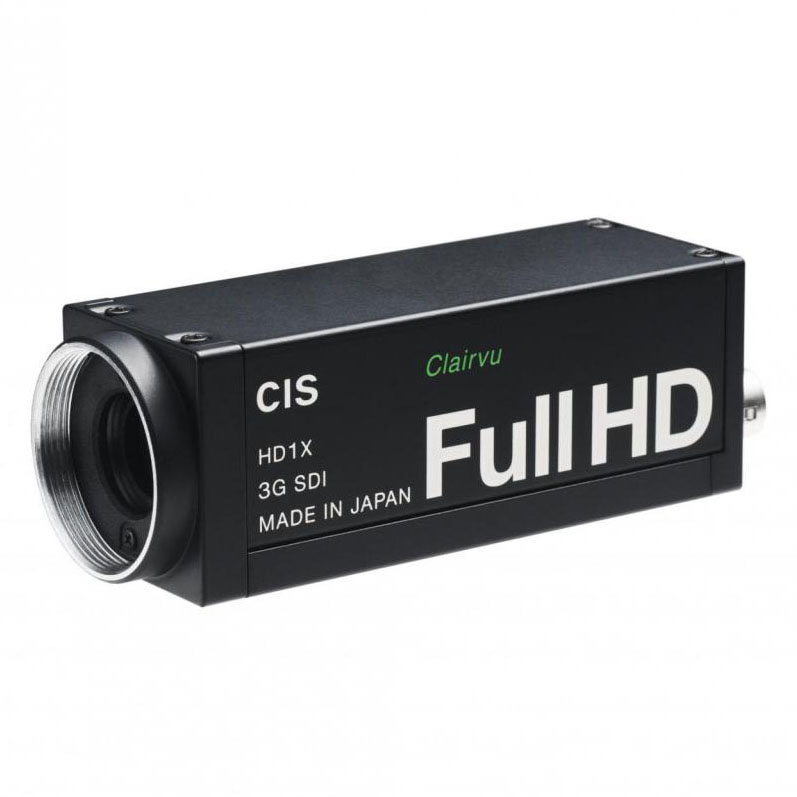

CIS VCC-HD1X Camera

CIS VCC-HD10X is a 1080p Full HD camera with GenLock function

3G-SDI interfaced, Full HD 60p output camera module. Features CIS original ISP, state-of-the-art "Clairvu" engine, for superb imaging quality and high speed processing (1920x1080@60fps).

Good for broadcasting applications in the compact footprint. 29mmx29mmx77mm. 3G SDI I/F enables its superb quality images to be transmitted without compression via coaxial cable. AE, auto white balance, color correction, edge enhancement, noise reduction, gamma and other function can be controlled via serial I/F.

FEATURES:

• 1080p Full HD (1920 x 1080, 60p)
• 1080p/1080i/720p read out supported
• GenLock function
• CIS original ISP, "Clairvu TM" engine for superb imaging quality
• 3G SDI I/F (HD SDI supported as well)
• 29x29x77mm
• C-mount
• DC Iris control port

Download Product PDF:

• CIS VCC-HD1X Camera

TECHNICAL INFORMATION:

• Sensor: 1/3type MOS
• Unit Cell Size: 2.75 x 2.75 µm
• Sensor Effective Pixels: 1944 x 1092
• Resolution: 1080p Full HD
• Frame Rate: 60fps
• Output Format: 3G SDI
• Power Consumption: 4.0W
• Power Requirements: DC+9~+15V
• Min. Illumination: F1.4 1.2lx
• Sensitivity: F5.6 2000lx
• Shutter Variable Range: 1/8k ~OPEN
• Gamma: Variable
• Gain Variable Range: 0~30dB
• White Balance: Auto, Manual, One push auto white balance
• Other Function: GenLock, 3DNR, AE, CC, and others
• Lens Mount: C mount
• Dimensions : 29 x 29 x 77mm
