Available Variations:

  • 1.4M100 HG Color

  • 1.4M100 HG Mono

Dalsa Falcon 1.4M100 HG ideal for applications in electronics manufacturing and semiconductor inspection.

Teledyne DALSA’s new Falcon 1.4M100 HG CMOS camera delivers 100 fps at full resolution in a compact body ideal for applications in electronics manufacturing and semiconductor inspection. The camera uses Teledyne DALSA’s patented CMOS sensor technology to deliver global shuttering, global reset, and concurrent integration and readout. The images produced are crisp and clear, avoiding image artifacts associated with rolling shutter. Part of the Falcon HG series, the 1.4M100 HG is optimized for high sensitivity.

Fully programmable, via base mini-Camera Link, the camera incorporates exposure control, gain and offset adjustment, and flat-field correction. Ease of use is enhanced through simple camera control and timing, and the ability to transmit data using 10m long mini-Camera Link cables. Like the other Falcon HG cameras, the 1.4M100 HG supports Power over Camera Link (PoCL), eliminating the need for a separate power cable and simplifying cabling and system integration.

Delivered in a robust, compact body, this camera should be your definitive choice for area based systems.

FEATURES

  • 1.4 megapixels, 100 fps
  • High responsivity
  • Global shutter and reset
  • Exposure control
  • Concurrent integration and readout
  • Faster frame rates through vertical windowing
  • Base Mini-Camera Link
  • 10 meter transmission @ 80 MHz
  • Power Over Camera Link (PoCL)
  • Flat field correction
  • Adjustable timing modes
  • Adjustable gain and offset
  • Test patterns and camera diagnostics



Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution: 1400 (H) x 1024 (V)
  • Data Rate: 2 x 80 MHz
  • Max. Line/Frame Rate: 100 fps
  • Pixel Size: 7.4 µm x 7.4 µm
  • Data Format: Up to 10 bits
  • Output: Base mini-Camera Link. PoCL compatible
  • Lens Mount: C-mount
  • Responsivity: 30 DN/(nJ/cm²)
  • Dynamic Range: 50 dB
  • Nominal Gain Range: 4x digital
  • Size: 44 x 44 x 44mm
  • Mass: <175 g
  • Operating Temp: 0 ºC to 50 ºC
  • Power Supply: 12V to 15V DC
  • Power Dissipation: <3 W
  • Regulatory Compliance: CE and RoHS
  • Control and Data: SDR26 mini-Camera Link
  • Power: Hirose 6 pin circular, or PoCL (shared with control)

Request a Quote

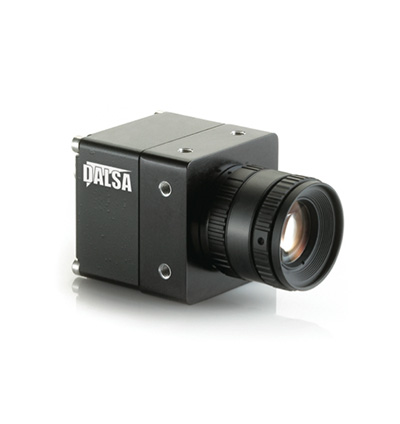

Product image of Dalsa Falcon 1.4M100 HG
Product Photos

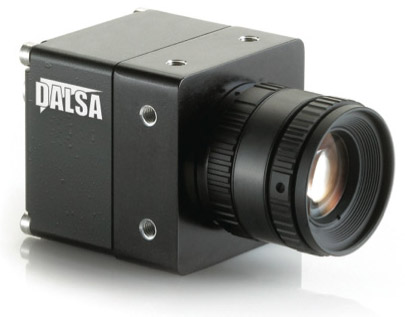

Product image of  Dalsa Falcon 1.4M100 HG

Quick Info for the Dalsa 1.4M100 HG Color

Camera Category: Area Scan
Camera Series: Falcon HG
FPS: 100
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: -
Signal System: Color

Quick Info for the Dalsa 1.4M100 HG Mono

Camera Category: Area Scan
Camera Series: Falcon HG
FPS: 100
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: -
Signal System: Monochrome
