Dalsa Falcon 1.4M100 XDR Camera

Part Number(s): FA-20-01M1H-00-R

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Falcon 1.4M100 XDR

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • 1.4M100 XDR Color

  • 1.4M100 XDR Mono

Dalsa Falcon Series : Falcon 1.4M100 XDR

Dalsa’s latest Falcon XDR 1.4 megapixel camera delivers 100 fps at full resolution in a compact body ideal for applications in electronics manufacturing and semiconductor inspection. The camera uses Teledyne DALSA's patented CMOS sensor technology to deliver global shuttering, global reset, and concurrent integration and readout. The images produced are crisp and clear, avoiding image artifacts associated with rolling shutter cameras.

Fully programmable, via base mini-Camera Link, the camera incorporates exposure control, gain and offset adjustment, and flat-field correction. Ease of use is enhanced through simple camera control and timing, and power over Camera Link (PoCL) eliminates the need for a separate power cable and simplifies cable and system integration. Delivered in a robust, compact body, this camera should be your definitive choice for area-based systems.

The Dalsa Falcon XDR model camera maximizes the available dynamic range. This results in a camera that best discerns subtle differences in images, allowing for greater defect detection than ever before.

FEATURES:

  • 1.4 megapixels, 100 fps
  • High dynamic range
  • Global shutter and reset
  • Exposure control
  • Concurrent integration and readout
  • Faster frame rates through vertical windowing
  • Power over Camera Link
  • Mini-Camera Link
  • 10 meter transmission @ 80 MHz
  • Flat field correction
  • Adjustable timing modes
  • Adjustable gain and offset
  • Test patterns and camera diagnostics

Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution: 1400 (H) x 1024 (V)
  • Data Rate: 2 x 80 MHz
  • Max. Line/Frame Rate: 100 fps
  • Pixel Size: 7.4 µm x 7.4 µm
  • Data Format: 8 or 10 bit
  • Output: Base mini-Camera Link
  • Lens Mount: C-mount
  • Responsivity: 12 DN/(nJ/cm²)
  • Dynamic Range: 57 dB
  • Nominal Gain Range: 4x digital
  • Size: 44 x 44 x 44mm
  • Mass: <175 g
  • Operating Temp: 0 ºC to 50 ºC
  • Power Supply: 12V to 15V DC
  • Power Dissipation: <3 W
  • Regulatory Compliance: CE and RoHS
  • Control: SDR26 mini-Camera Link
  • Data: Shared with Control
  • Power: Hirose 6 pin circular, or PoCL (shared with control)
  • Example Part Number: FA-20-01M1H

Request a Quote

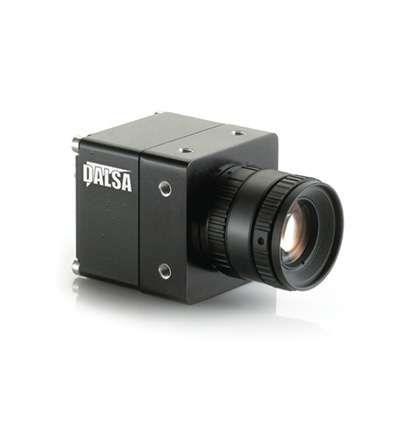

Product image of Dalsa Falcon 1.4M100 XDR
Product Photos

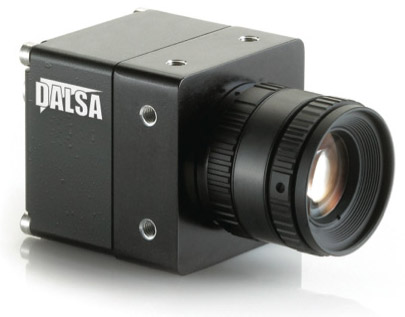

Product image of  Dalsa Falcon 1.4M100 XDR

Quick Info for the Dalsa 1.4M100 XDR Color

Camera Category: Area Scan
Camera Series: Falcon XDR
FPS: 100
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: -
Signal System: Color
Technology: Camera Link Cameras

Quick Info for the Dalsa 1.4M100 XDR Mono

Camera Category: Area Scan
Camera Series: Falcon XDR
FPS: 100
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: Progressive Scan
Scanning Mode: Progressive Scan
Signal System: Monochrome
Technology: Camera Link Cameras
