Dalsa Falcon Camera Series: Falcon 4M30

Perfect for electronics manufacturing and semiconductor inspection, the Dalsa Falcon 4M30 SA camera uses DALSA's patented CMOS sensor technology capable of 31 fps at full 4 megapixel resolution.

The 4M60 and 4M30 use an electronic shutter to eliminate the imaging issues often associated with full frame, frame transfer, or rolling shutter cameras, such as smearing or time displacement artifacts. Fully programmable with a Base or Medium Camera Link interface, the cameras incorporate vertical windowing, exposure control, gain and offset adjustment and 1000x antiblooming. Additionally, the camera's powerful flat field correction (FFC) creates individual gain and offset coefficients for each pixel.

FEATURES:

  • 4 megapixel DALSA CMOS imager
  • 31 fps
  • 8 or 10 bit data
  • Global (non-rolling) electronic shutter with exposure control
  • Flat field correction (FFC)
  • 1000x antiblooming
  • Higher frame rates with vertical windowing
  • NEW: High speed 10 meter data transmission
  • NEW: New snapshot modes
  • 10 µs min. exposure time

Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution: 2352 x 1728
  • Data Rate: 2 x 80 MHz
  • Max. Line/Frame Rate: 31 fps
  • Pixel Size: 7.4 µm
  • Data Format: 8,10 bit
  • Output: Base, Medium Camera Link
  • Lens Mount: M42 x 1, F
  • Responsivity: 14 DN/(nJ/cm²) @ 1x gain
  • Dynamic Range: 56 dB
  • Nominal Gain Range: Up to 4x
  • Size: 94 x 94 x 50 mm
  • Mass: <550 g
  • Operating Temp: 0 ºC to 50 ºC
  • Power Supply: 12V to 15V
  • Power Dissipation: <10 W
  • Regulatory Compliance: CE
  • Control: MDR26 Camera Link
  • Data: Shared with Control
  • Power: Hirose 6 pin

Request a Quote

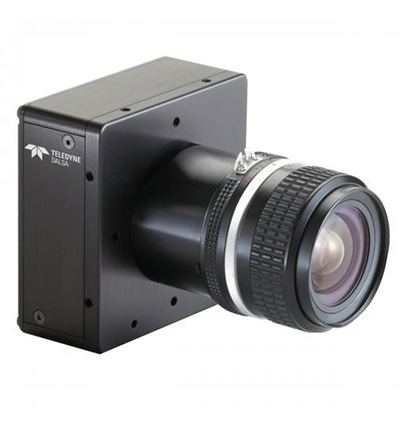

Product image of Dalsa Falcon 4M30
Product Photos
Product image of  Dalsa Falcon 4M30

Quick Info for the Dalsa 4M30 Mono

Camera Category: Area Scan
Camera Series: Falcon
FPS: 31
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 4 MP
Scanning Mode: -
Signal System: Monochrome
