Dalsa Falcon2 Series: Falcon2 4M Pixel Monochrome Camera Link Camera

Please note this Camera is Discontinued. However, a direct revised replacement is available:  FA-80-4M180-01-R

The  Dalsa Falcon2 4M camera incorporates the company's latest CMOS imaging technology making this cameras ideal for more detailed inspection of objects in a shorter amount of time. Typical applications include automated optical inspection (AOI) for electronics manufacturing, semiconductor wafer inspection, flat panel display inspection, as well as solar panel inspection.

FEATURES:

  • 4 megapixels, 168 fps
  • Selectable 4:3 (2432 x 1728) or 1:1 (2048 x 2048) aspect ratio
  • High responsivity
  • Global shutter and reset
  • Exposure control
  • Concurrent integration and readout
  • Faster frame rates through vertical windowing
  • Base Mini-Camera Link
  • 10 meter transmission @ 80 MHz
  • Flat field correction
  • Adjustable timing modes
  • Adjustable gain and offset
  • Test patterns and camera diagnostics

Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution:
    4:3 aspect ratio: 12M—4096 (H) x 3072 (V), 8M—3328 (H) x 2502 (V), 4M—2432 (H) x 1728 (V)
    1:1 aspect ratio: 8M—2816 (H) x 2816 (V), 4M—2048 (H) x 2048 (V)
  • Pixel Rate: 8 x 76 MHz or 10 x 76 MHz
  • Max. Frame Rate: 12M—58 fps / 8M—90 fps / 4M—168 fps, all at 8-bits (Maximum frame rates are dependent on the aspect ratio used.)
  • Pixel Size: 6 μm x 6 μm
  • Bit Depth: 8 or 10 bit
  • Lens Mount: M42 x 1
  • Dynamic Range: 57 dB
  • Exposure Time: 20 µs minimum
  • Size: 60 mm (H) x 60 mm (W) x 80.5 mm (D)
  • Mass: < 300 g
  • Operating Temp: 0 °C to 50 °C, front plate temperature
  • Power Supply: 12 V to 24 V DC
  • Power Dissipation: 10 W
  • Regulatory Compliance: CE and RoHS
  • Data Interface: 2 x Full Camera Link—SDR26
  • Power Connector: Hirose 12-pin circular
  • Mechanical Dimensions:
  • 60 mm (H) x 60 mm (W) x 80,5 mm (D) (75 mm deep excluding the back fins)

Request a Quote

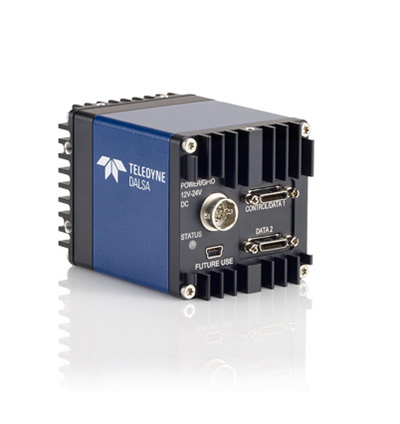

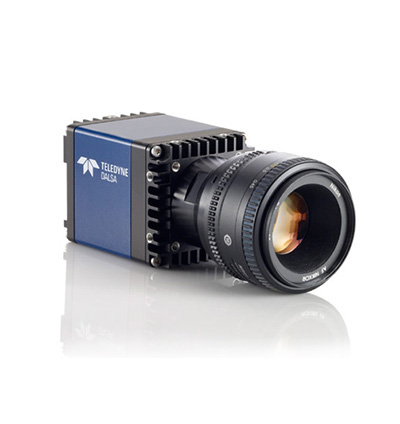

Product image of Dalsa Falcon2 4M
Product image of Dalsa Falcon2 4M
Product image of Dalsa Falcon2 4M
Product Photos
Product image of  Dalsa Falcon2 4M Product image of  Dalsa Falcon2 4M Product image of  Dalsa Falcon2 4M

Quick Info for the Dalsa 4M Color

Camera Category: Area Scan
Camera Series: Falcon2
FPS: 168
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 4.2 MP
Scanning Mode: Area Scan
Signal System: Color

Quick Info for the Dalsa 4M Mono

Camera Category: Area Scan
Camera Series: Falcon2
FPS: 168
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 4.2 MP
Scanning Mode: Area Scan
Signal System: Monochrome
