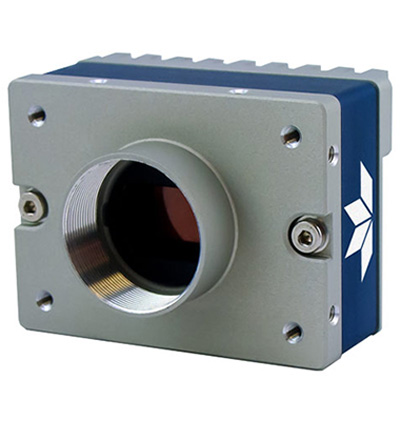

Dalsa Genie Nano-5G 2450 Camera

Welcoming the Genie Nano-5G 2450, a GigE Vision CMOS area scan camera

This Sony IMX250 Genie Nano 5G 2450 camera provides 2464 x 2056 active resolution, with a 141fps. These compact GigE Vision cameras offer uncompromised image quality and redefine high performance with a 3.45 μm.

Genie Nano starts with industry leading image CMOS sensors and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature,and an unmatched feature set — all at an incredible price. Teledyne DALSA’s proprietary TurboDrive™ technology allows Genie Nano to deliver its full image quality at faster frame rates — often 150% or higher. Like all Teledyne DALSA GigE cameras, the Genie Nano-5G is based on AIA GigE Vision Standard to directly link the camera to a PC.

Key Features

• 5 GigE Ethernet port & hardware
• Supports cable lengths up to 100 m (CAT-5e, CAT-6) or (4T-6A)
• Simplified set-up with field proven Sapera LT software featuring CamExpert
• Engineered to accommodate industrial environment with a ruggedized screw mount RJ-45 connector

Download Product PDF:

• Dalsa Genie Nano-5G 2450 Camera

TECHNICAL INFORMATION:

Programmability

• Higher frame rates achievable in partial scan mode
• Global electronic shutter with exposure control
• Multi-exposure feature
• Multi-ROI feature
• Metadata support
• IEEE1588 (Precision Time Protocol) support
• Binning
• Look-up-table and More

Reliability

• Robust all-metal body
• 3 year warranty
• Trigger to Image Reliability (T2IR) framework improves the reliability of your inspection system and protects you from data loss

Typical Applications

• Electronics manufacturing inspection
• Industrial metrology
• Intelligent traffic systems

Regulatory Compliance

• CE, FCC and RoHS
