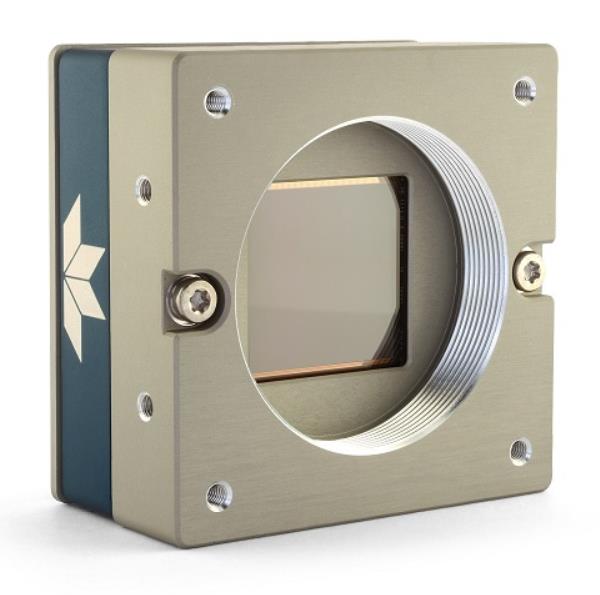

Dalsa Genie Nano-5G 45M Camera
Get a Quote for the Dalsa Genie Nano-5G 45M
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
Nano-5G-C8105
Nano-5G-M8105
Smaller, faster, stronger, cheaper.
Introducing the Genie Nano-5G, a GigE Vision CMOS area scan camera that redefines high performance. Genie Nano starts with industry leading image CMOS sensors from 3.2 to 45 megapixel and adds proprietary camera technology for breakthrough speed, a robust build quality for wide operating temperature, and an unmatched feature set — all at an incredible price. Teledyne DALSA’s proprietary TurboDrive™ technology allows Genie Nano to deliver its full image quality at faster frame rates — often 150% or higher. Like all Teledyne DALSA GigE cameras, the Genie Nano-5G is based on AIA GigE Vision Standard to directly link the camera to a PC.
Download Product PDF:
TECHNICAL INFORMATION:
- 5 GigE Ethernet port & hardware
- Supports cable lengths up to 100 m (CAT-5e, CAT-6) or (4T-6A)
- Simplified set-up with fi eld proven Sapera LT software featuring CamExpert
- Engineered to accommodate industrial environment with a ruggedized screw mount RJ-45 connector
- Higher frame rates achievable in partial scan mode
- Global electronic shutter with exposure control
- Multi-exposure feature
- Multi-ROI feature
- Metadata support
- IEEE1588 (Precision Time Protocol) support
- Binning
- Look-up-table and More
- Robust all-metal body
- 3 year warranty
- Trigger to Image Reliability (T2IR) framework improves the reliability of your inspection system and protects you from data loss
Quick Info for the Dalsa Nano-5G-C8105
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano 5G |
FPS: | 15 |
Interface: | GigE Vision |
Manufacturer: | Dalsa |
Resolutions: | 8192 |
Scanning Mode: | Area Scan |
Signal System: | Color |
Quick Info for the Dalsa Nano-5G-M8105
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano 5G |
FPS: | 15 |
Interface: | GigE Vision |
Manufacturer: | Dalsa |
Resolutions: | 8192 |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
