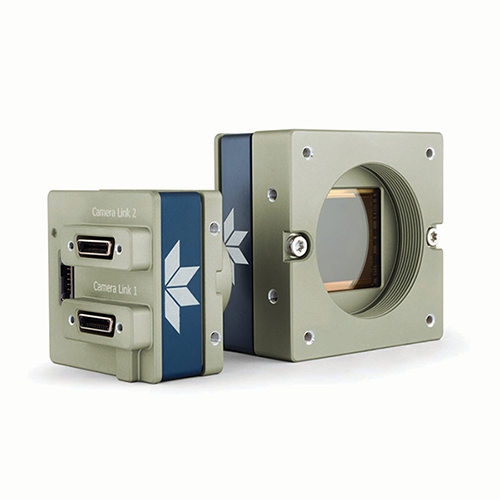

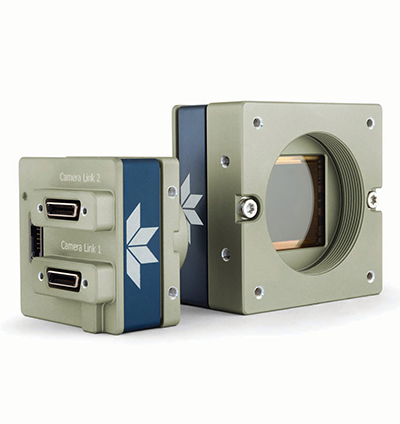

Dalsa Genie Nano-CL 4040 Camera

Compact Camera Link cameras with unprecedented speed and uncompromised image quality.

Introducing Genie Nano-CL, a Camera Link CMOS area scan camera that redefines low cost
performance. Genie Nano-CL starts with industry leading image CMOS sensors from 5.1 to 25
megapixel resolution and adds proven Camera Link technology for breakthrough speed,
a robust build quality for wide operating temperature, and an unmatched feature set—all at
an incredible price.

Download Product PDF:

• Dalsa Genie Nano-CL 4040 Camera

TECHNICAL INFORMATION:

• Total Pixels: 12.4 MP
• Interface Speed: 85 MHz
• Camera Link Mode: Extended-Full (80 bit)
• Bit Depth: 8 bit, 12 bit
• Operating Temperature: -20—65 °C
• Dynamic Range: 56 dB
• Supported Lens Options: C-Mount
• Shutter Type: Global Shutter
• Power Requirement: PoCL or 10-30 VDC
• Synchronisation: free-run, hardware trigger
• Exposure Control: hardware trigger, programmable via camera API
• General Purpose I/O: 1 digital input (CC1)
• Dimensions (W x H x L): 44 x 44 x 23 mm
