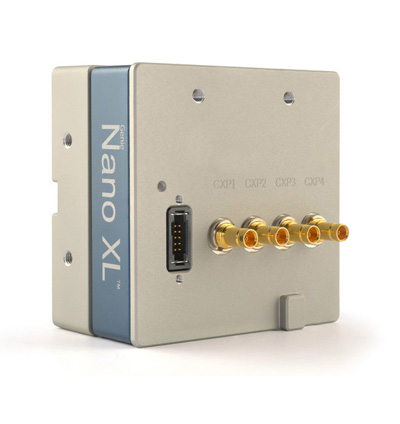

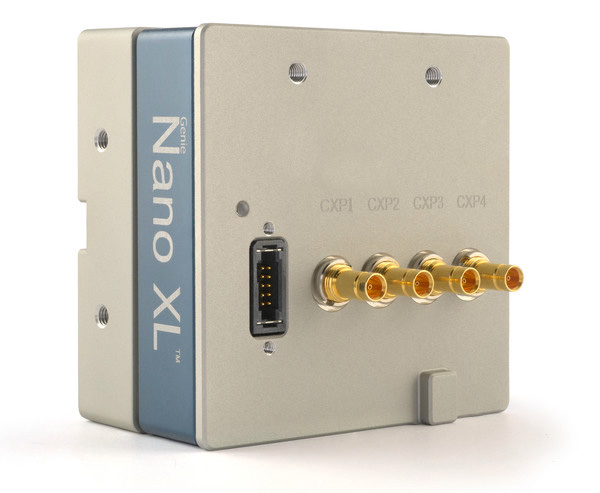

Dalsa Genie Nano-CXP Camera
Part Number(s): G3-XC30-C4095, G3-XC30-C5105, G3-XC30-M4095, G3-XM32-M4095, G3-XC30-M5105, G3-XM32-M5105
Get a Quote for the Dalsa Genie Nano-CXP
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
CXP-C4090
CXP-C5100
CXP-M4090
CXP-M4090-NIR
CXP-M5100
CXP-M5100-NIR
CXP-M6200
Teledyne Dalsa introduces the Genie Nano-CXP, a CMOS area scan camera.
The Genie Nano-CXP redefines performance. Genie Nano-CXP starts with industry leading image CMOS sensors from 16 to 67 megapixel resolution and adds proven CoaXPress 6Gbps technology for breakthrough speed, a robust build quality for wide operating temperature, and an unmatched feature set.
The Genie Nano-CX Ptakes advantage of leading industrial image sensors from Teledyne E2V and On-Semi, starting with the 25M and 16M monochrome/NIR models, with additional models and series that support advanced camera features in a compact form factor for easy integration.
Download Product PDF:
TECHNICAL INFORMATION:
Key Features
- Industry’s latest CMOS image sensors
- Simplified set-up with field proven Sapera LT
- software featuring CamExpert
- Engineered to accommodate industrial environment
- with DIN connectors
- GenICan GenCP compliant
Programmability
- Higher frame rates achievable in partial scan mode
- Global electronic shutter with exposure control
- Multi-ROI feature
Reliability
- Robust all-metal body
- 3 year warranty
- Trigger to Image Reliability (T2IR) framework improves
- the reliability of your inspection system and protects
- you from data loss
Typical Applications
- Semiconductor wafer inspection
- Surface and bump inspection
- Electronics manufacturing
- 3D solder paste inspection
- Package and bump inspection
- Automated Optical Inspection (AOI)
- Solar panel inspection
- General machine vision
Regulatory Compliance
- CE, FCC, RoHS, GenICam, IP30, CoaXPress 1.1
- KC certification
Quick Info for the Dalsa CXP-C4090
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano-CXP |
FPS: | 120 |
Interface: | CoaXPress |
Manufacturer: | Dalsa |
Resolutions: | 4096 x 4096 |
Scanning Mode: | Area Scan |
Signal System: | Color |
Quick Info for the Dalsa CXP-C5100
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano-CXP |
FPS: | 80 |
Interface: | CoaXPress |
Manufacturer: | Dalsa |
Resolutions: | 5120 x 5120 |
Scanning Mode: | Area Scan |
Signal System: | Color |
Quick Info for the Dalsa CXP-M4090
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano-CXP |
FPS: | 120 |
Interface: | CoaXPress |
Manufacturer: | Dalsa |
Resolutions: | 4096 x 4096 |
Scanning Mode: | Area Scan |
Signal System: | IR |
Quick Info for the Dalsa CXP-M4090-NIR
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano-CXP |
FPS: | 120 |
Interface: | CoaXPress |
Manufacturer: | Dalsa |
Resolutions: | 4096 x 4096 |
Scanning Mode: | Area Scan |
Signal System: | NIR |
Quick Info for the Dalsa CXP-M5100
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano-CXP |
FPS: | 80 |
Interface: | CoaXPress |
Manufacturer: | Dalsa |
Resolutions: | 5120 x 5120 |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
Quick Info for the Dalsa CXP-M5100-NIR
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano-CXP |
FPS: | 80 |
Interface: | CoaXPress |
Manufacturer: | Dalsa |
Resolutions: | 5120 x 5120 |
Scanning Mode: | Area Scan |
Signal System: | NIR |
Quick Info for the Dalsa CXP-M6200
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie Nano-CXP |
FPS: | 40 |
Interface: | CoaXPress |
Manufacturer: | Dalsa |
Resolutions: | 6144 x 6144 |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
