Introducing the Innovative New Genie Nano with On-Chip Polarization Technology

On Chip Polarization eBookThe Dalsa Genie Nano 2450 Polarized Camera is an innovative addition to the Genie Nano family. Built around the 5 megapixel IMX250MZR polarized sensor from Sony, this camera features on-chip polarization technology for simpler, more effective polarization of light. Whether it’s for reducing reflections or glare, improving contrast in low light, stress inspections, or inspections of transparent objects, the Genie Nano 2450 Polarized Camera can polarize any angle of light for high quality imaging in difficult environments.

Key Features

  • Uses standard PC Ethernet port & hardware
  • Supports cable lengths up to 100 m (CAT-5e or CAT-6)
  • Simplified set-up with field proven Sapera LT software featuring CamExpert
  • Engineered to accommodate industrial environment with a ruggedized screw mount
  • RJ-45 connector

Programmability

  • Higher frame rates achievable in partial scan mode
  • Global electronic shutter with exposure control
  • Multi-exposure feature
  • Multi-ROI feature
  • Metadata support
  • IEEE1588 (Precision Time Protocol) support
  • Binning
  • Look-up-table and More

Reliability

  • Robust all-metal body
  • 3 year warranty
  • Trigger to Image Reliability (T2IR) framework improves the reliability of your inspection system and protects you from data loss

Typical Applications

  • Electronics manufacturing inspection
  • Industrial metrology
  • Intelligent traffic systems

Regulatory Compliance

  • CE, FCC and RoHS

Download Product PDF:

TECHNICAL INFORMATION:

Technical Features

  • Total Pixels: 5 MP
  • Interface Speed: 1 Gbps
  • Bit Depth: 8 bit, 12 bit
  • Operating Temperature: -20—65 °C
  • Dynamic Range: 56 dB
  • Supported Lens Options: C-Mount, CS-Mount
  • Shutter Type: Global Shutter
  • Power Requirement: PoE or 10-36 VDC
  • Synchronisation: software trigger, free-run, hardware trigger, PTP
  • Exposure Control: hardware trigger, programmable via camera API, automatic
  • General Purpose I/O: 2 digital input, 2 digital output
  • Dimensions (W x H x L): 21 x 29 x 44 mm
  • Mass: 46 g

Spectral Sensitivity Characteristics

Spectral-Sensitivity-Characteristics_genie-nano-cameras

Request a Quote

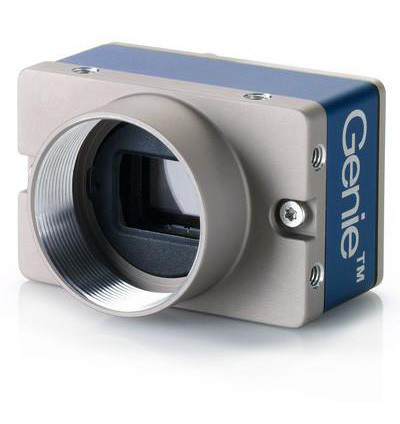

Product image of Dalsa Genie Nano 2450 Polarized

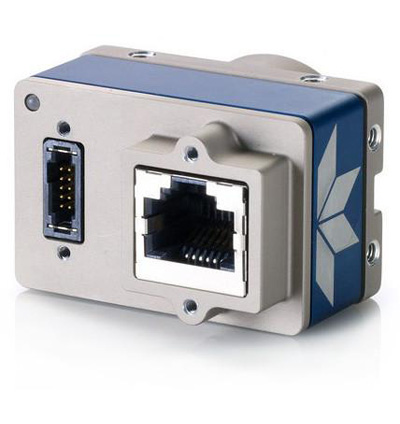

Product image of Dalsa Genie Nano 2450 Polarized
Product Photos
Product image of  Dalsa Genie Nano 2450 Polarized Product image of  Dalsa Genie Nano 2450 Polarized

Quick Info for the Dalsa Genie Nano-M2450-Polarized

Camera Category: Area Scan
Camera Series: Genie Nano
FPS: 35
Interface: GigE
Manufacturer: Dalsa
Resolutions: 2448 x 2048
Scanning Mode: Area Scan
Signal System: Monochrome
