Compact GigE Vision camera with very high resolution

The Genie NanoXL-M5100 offers both the On-Semi Python 25K Monochrome version sensor with a resolution of 5120 x 5120. Teledyne DALSA’s “Burst Acquisition” and “Turbo Drive” feature allows for image capture rates of 20 fps in 25 M pixels resolution while maintaining very good image quality. The Genie NanoXL-M5100 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Teledyne DALSA GigE cameras, the Genie NanoXL-M5100 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

  • Uses standard PC Ethernet port & hardware
  • Supports cable lengths up to 100 m (CAT-5e or CAT-6)
  • Simplified set-up with field proven Sapera
  • Essential software featuring CamExpert
  • Engineered to accommodate industrial environment with a Ruggedize, screw mount, RJ-45 connector
  • Higher frame rates achievable in partial scan mode
  • Global electronic shutter with exposure Control
  • Multi-Exposure Feature
  • Multi-ROI Feature

TYPICAL APPLICATIONS:

  • Electronics manufacturing inspection
  • Industrial metrology
  • Intelligent traffic systems

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 5120 x 5120
  • Acquisition Frame Rate: 20 fps (internal BurstMode)
  • Data Output Transfer: Gigabit Ethernet (1000 Mbit/s) only
  • Pixel Size: 4.5 μm x 4.5 μm
  • Data Format: 8 Bits output
  • Exposure Control: Automatic, Programmable, or via External Trigger
  • Dynamic Range: 55.2 dB
  • Gain Control :Automatic, Manual up to 8x analog gain
  • I/O Ports: 2 opto-isolated input, 3 opto-isolated output
  • Image Buffer: 500 MB of On-board memory
  • Lens Mount: M42 mount
  • Size (L x H x W): 30 mm x 59 mm x 59 mm (without lens adapter or connectors)

Request a Quote

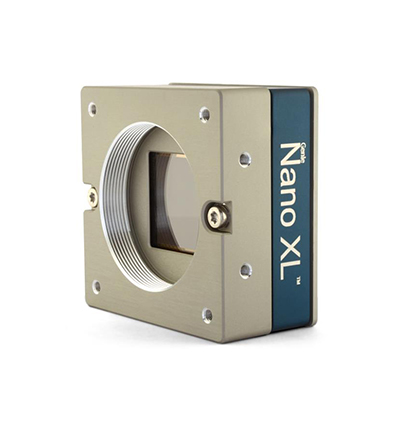

Product image of Dalsa Genie NanoXL M5100

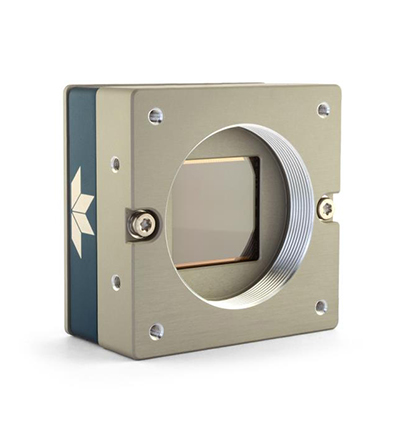

Product image of Dalsa Genie NanoXL M5100
Product Photos

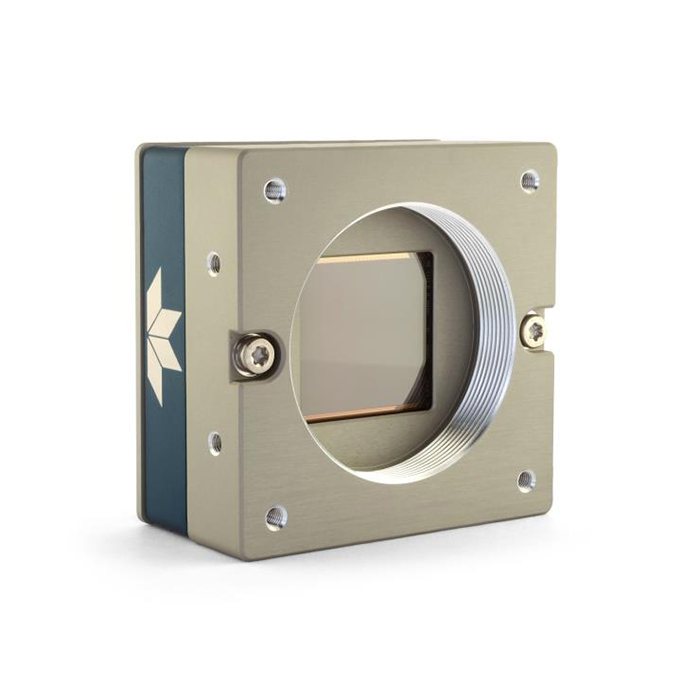

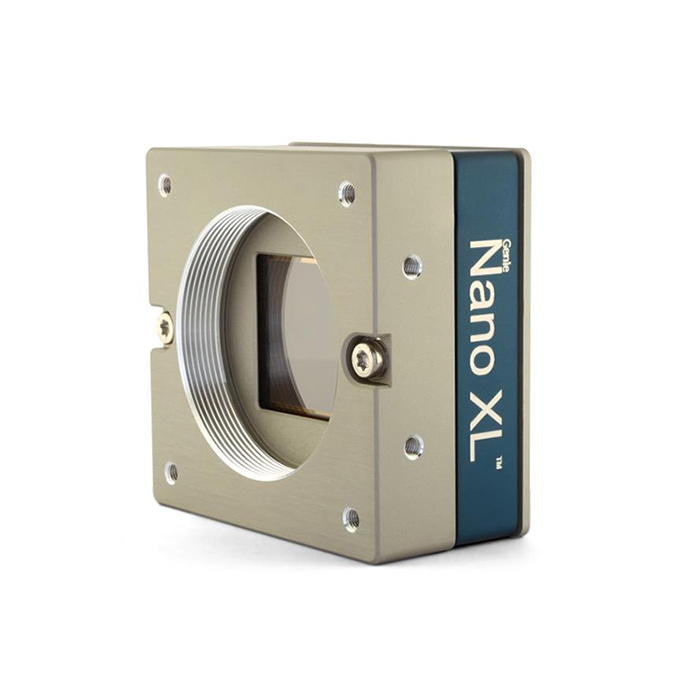

Product image of  Dalsa Genie NanoXL M5100 Product image of  Dalsa Genie NanoXL M5100

Quick Info for the Dalsa Genie NanoXL-M5100

Camera Category: Area Scan
Camera Series: Genie Nano
FPS: 20
Interface: GigE
Manufacturer: Dalsa
Resolutions: 25 MP
Scanning Mode: Area Scan
Signal System: Monochrome
