Available Variations:

  • TS-C2500

  • TS-M2500

The Dalsa Genie TS-M2500 camera uses an advanced Teledyne DALSA CMOS monochrome sensor with a resolution of 2560 x 2048.

The Dalsa Genie TS-M2500 camera takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Genie cameras, the TS-M2500 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

  • Uses standard PC Ethernet port & hardware
  • Supports cable lengths up to 100 m (CAT-5e or CAT-6)
  • Simplified set-up with field proven Sapera Essential software featuring CamExpert
  • Engineered to accommodate industrial environment with a Ruggedize, screw mount, RJ-45 connector
  • Auto-Iris (Video, DC or Motorized)

PROGRAMMABILITY:

  • Higher frame rates achievable in partial scan mode
  • Global electronic shutter with exposure Control
  • Auto-Brightness Feature
  • Extended Dynamic Range Function
  • On-board flat-field correction
  • Multi-Exposure Feature
  • Programmable LUTs
  • On-board Image compression
  • Transfer On-Demand Function
  • IEEE1588 Precise time Protocol

TYPICAL APPLICATIONS:

  • Electronics manufacturing inspection
  • Industrial metrology
  • Intelligent traffic systems

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 2560 x 2048
  • Frame Rate: 24 fps in Free-running / 29 fps in Burst Mode
  • Pixel Size: 6.0 µm
  • Data Format: 8 and 10-bits
  • Exposure Control: Automatic, Programmable, or via External Trigger
  • Dynamic Range: 60 dB
  • Gain Control: Automatic, Manual and One-Push Gain modes
  • Output: Gigabit Ethernet, also supports 100 Mbps
  • I/O Ports: 4 opto-isolated input, 4 opto-isolated output, 3 motorized Control, RS-485 Port, and RS-232 Port
  • Lens Mount: M42x1
  • Size: 49 mm x 49 mm x 54 mm
  • Mass: TBD
  • Operating Temp: 0°–50°C
  • Power Supply: 12 to 24V or Power Over Ethernet (POE)
  • Power Dissipation: ~4 to 5W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Micro-D 25-pin and 4-pin auto-Iris
  • Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC (Pending)
  • Camera Specification: GigE Vision v2.0 Compliant (Pending)
  • Software Platform: Teledyne DALSA Sapera LT or 3rd Party Genicam Compliant SDK

Request a Quote

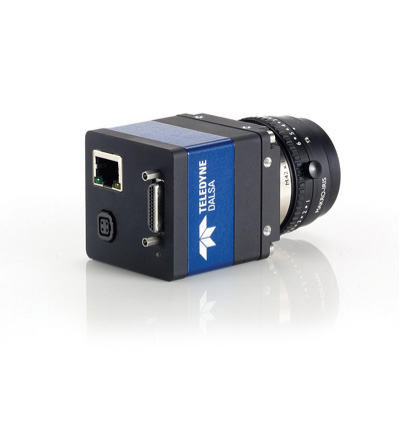

Product image of Dalsa TS 2500

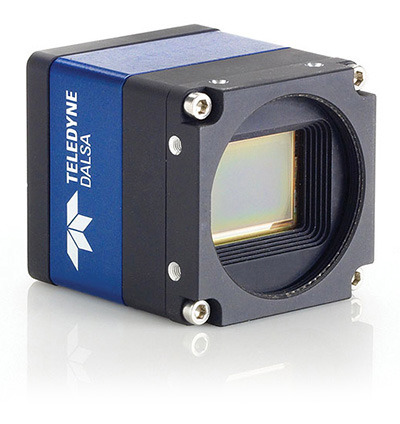

Product image of Dalsa TS 2500
Product Photos
Product image of  Dalsa TS 2500 Product image of  Dalsa TS 2500

Quick Info for the Dalsa TS-C2500

Camera Category: Area Scan
Camera Series: Genie TS
FPS: 29
Interface: GigE
Manufacturer: Dalsa
Resolutions: 5.2 MP
Scanning Mode: -
Signal System: Color

Quick Info for the Dalsa TS-M2500

Camera Category: Area Scan
Camera Series: Genie TS
FPS: 29
Interface: GigE
Manufacturer: Dalsa
Resolutions: 5.2 MP
Scanning Mode: Area Scan
Signal System: Monochrome
