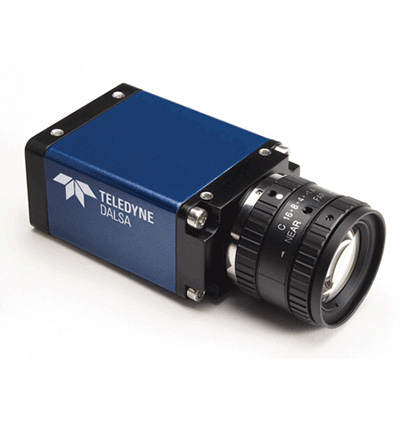

Dalsa C1280 Camera
Part Number(s): CR-GC00-C128x
Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote
Get a Quote for the Dalsa C1280
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
C1280-1/3
C1280-1/3CS
C1280-1/3CS-RA
C1280-1/3-RA
The Genie C1280 uses a Sony CCD, color bayer sensor with a resolution of 1280 x 960.
Operating at 24 frames per second at full resolution, the Genie C1280 takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Genie cameras, the C1280 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.
FEATURES:
- Uses standard PC and server Ethernet ports & hardware
- Supports cable lengths up to 100 m (CAT-5e or CAT-6)
- Simplified set-up with field proven Sapera Essential software featuring CamExpert
- Engineered to accommodate industrial environement with a ruggedized, screw mount, RJ-45 connector
- Small compact form factor
- 32 bits, YUV or Raw Bayer
- On-board Color Conversion
- Higher frame rates with vertical windowing
- Engineered with Teledyne DALSA’s Trigger-to-Image Reliability framework
- GigE Vision compliant
Download Product PDF:
TECHNICAL INFORMATION:
- Active Resolution: 1280 x 960
- Frame Rate: 24 fps
- Pixel Size: 3.75 µm
- Data Format: 32-bits, YUV or Raw Bayer
- Exposure Control: Programmable, or via External Trigger
- Dynamic Range: 57 dB
- Nominal Gain Range: -6 dB to +12 dB
- Output: Gigabit Ethernet, also supports 100 Mbps
- I/O Ports: 2 opto-isolated input, 2 opto-isolated output
- Lens Mount: C
- Size: 44 mm x 29 mm x 67 mm (including lens adapter)
- Mass: ~115 g (without lens)
- Operating Temp: 0°–45°C
- Power Supply: 12 to 24V
- Power Dissipation: 4W
- Data Connector: Standard or Screw mount RJ-45
- Power and I/O: Hirose 12-Pin
- Software Platform: Teledyne DALSA Sapera LT
- GigE Vision Compliant: Yes
- Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
- Part Number: CR-GC00-C128x
Quick Info for the Dalsa C1280-1/3
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 24 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.2 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
Quick Info for the Dalsa C1280-1/3CS
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 24 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.2 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
Quick Info for the Dalsa C1280-1/3CS-RA
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 24 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.2 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
Quick Info for the Dalsa C1280-1/3-RA
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 24 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.2 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
